Hyundai Genesis 3.8L G6DA MFI Connector Diagrams SD313-18 - Pinout Views
Service manual connector identification page showing multiple MFI control system connectors and their pin layouts.

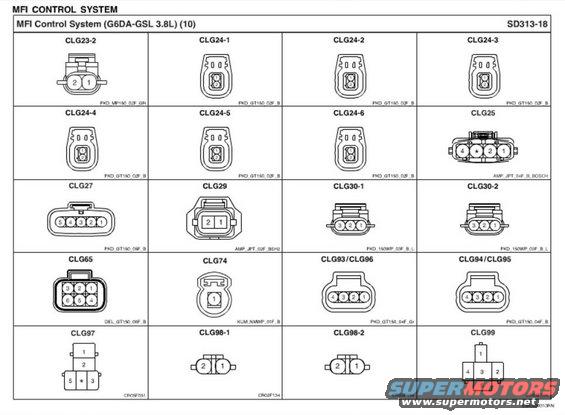

This document is page SD313-18 from a Hyundai service manual, showing connector face views for the MFI (Multiport Fuel Injection) Control System on the G6DA-GSL 3.8L engine — page 10 of a multi-page connector reference set. It presents a grid of twenty connector diagrams, each identified by a connector designation (CLG23-2, CLG24-1 through CLG24-6, CLG25, CLG27, CLG29, CLG30-1, CLG30-2, CLG65, CLG74, CLG93/CLG96, CLG94/CLG95, CLG97, CLG98-1, CLG98-2, and CLG99). Each drawing shows the connector housing shape, cavity/pin numbering as viewed at the connector face, and a connector body part code beneath (e.g., PKD_GT150_02F_B, AMP_JPT_04F_B_BOSCH, DEL_GT150_06F_B, KUM_NMWP_01F_B, PKD_150WP_03F_B_L). Pin counts range from single-pin (CLG74) to six-pin (CLG65). A reader can use this page to identify the physical shape, terminal layout, and pin numbering of engine harness connectors when tracing MFI control circuits — useful for probing sensor/injector connectors, verifying wiring diagram pin references, or sourcing replacement connector housings. The document code EBKSD313RN appears at the bottom right.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What engine does this MFI connector page cover?
- The header states it covers the MFI Control System for the G6DA-GSL 3.8L engine, page (10), reference SD313-18.
- How many pins does connector CLG65 have?
- CLG65 is a six-pin connector (pins 3, 2, 1 on the top row and 6, 5, 4 on the bottom), with housing code DEL_GT150_06F_B.
- What is the connector housing code for CLG25?
- CLG25 is labeled AMP_JPT_04F_B_BOSCH and shows cavities 4, *, 2, 1.
- Which connectors on this page are 2-pin PKD_GT150_02F_B types?
- CLG24-1 through CLG24-6 are all 2-pin connectors marked PKD_GT150_02F_B (CLG23-2 is a similar 2-pin but marked PKD_MP150_02F_GR).
- What connector has only one pin?
- CLG74 is a single-pin connector with housing code KUM_NMWP_01F_B.
