What engine does this MFI connector diagram cover?

The document states it covers the MFI Control System for the G6DA-GSL 3.8L engine (page SD313-19, sheet 11).

Which connectors are shown on this page?

E01, E02, E03, E15, E07, E34, E45, F12, F39, F43, M07-B, M11-A, M11-B, M14-A, M36, M48-R, M51-A, and M51-B, each with its pin layout and housing code.

What is the largest connector shown and its housing code?

E15 is the largest, a 46-position connector with housing code FCI_ESP_46F_B.

What is the housing code for the E45 diagnostic connector?

E45 is labeled KET_DIAG_20F_B_BRK_GH, a 20-position connector.

How many pins does connector M11-A have and what is its part code?

M11-A is a 20-position connector (pins 1–20 with some unused cavities), housing code AMP_040M1_20F_B.

Home/ Registry/ Hyundai/ Genesis/ “Coupe”/ Photo supermotors.net/registry/media/1164321

Hyundai Genesis Coupe 3.8L G6DA MFI Connector Pinouts - SD313-19 Diagram

MFI control system connector pinout reference showing engine and module connectors

‹ ›

Connector identification reference page listing engine and control-module connectors with terminal numbering.

AI caption March 2021 · Photo 951 of 981

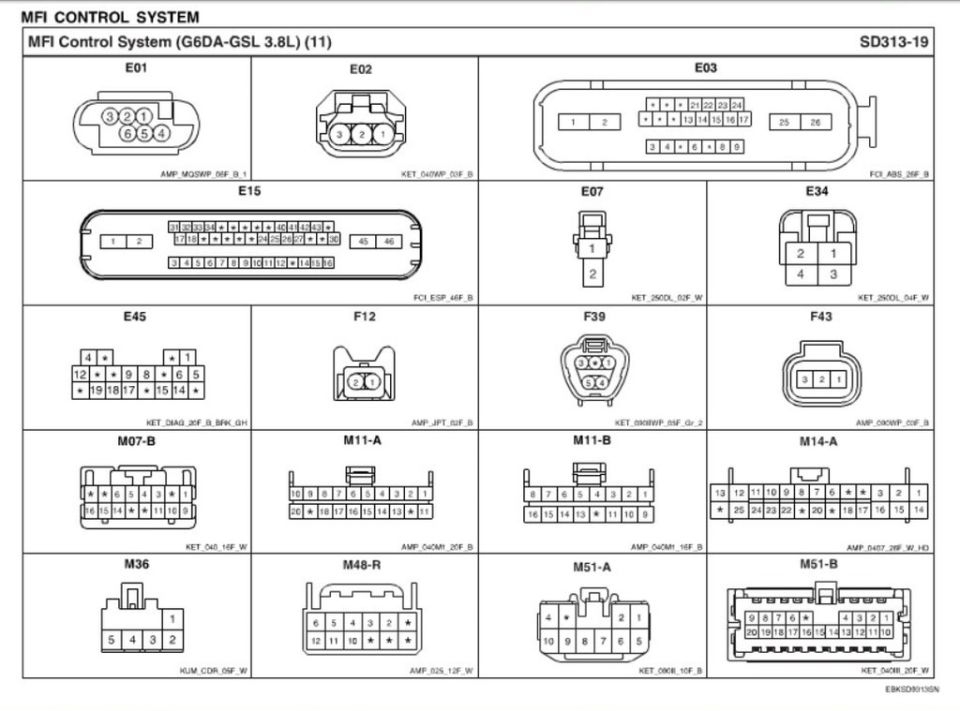

This document is page SD313-19 from a Hyundai service wiring manual, titled 'MFI Control System (G6DA-GSL 3.8L) (11)'. It is a connector pinout reference chart for the Multiport Fuel Injection (MFI) control system on the 3.8L G6DA GSL engine. The page shows face views of 18 electrical connectors, each identified by its harness connector code (E01, E02, E03, E15, E07, E34, E45, F12, F39, F43, M07-B, M11-A, M11-B, M14-A, M36, M48-R, M51-A, M51-B). Each connector drawing shows the cavity/pin numbering layout as seen at the connector face, with asterisks marking unused or unnumbered cavities. Beneath each drawing is the connector housing part/type code (e.g., AMP_MQSWP_06F_B_1, FCI_ESP_46F_B, KET_DIAG_20F_B_BRK_GH, AMP_040M1_20F_B). Connectors range from small 2-pin types (E07, F12) up to 46-pin (E15) and 26-pin (E03, M14-A) multi-way connectors. A reader can use this page to identify connector shapes, pin numbering orientation, and housing types when tracing MFI control system circuits or probing terminals on a 3.8L Genesis Coupe (BK1) harness. Drawing reference code EBKSD9013SN appears at bottom right.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What engine does this MFI connector diagram cover?: The document states it covers the MFI Control System for the G6DA-GSL 3.8L engine (page SD313-19, sheet 11).
Which connectors are shown on this page?: E01, E02, E03, E15, E07, E34, E45, F12, F39, F43, M07-B, M11-A, M11-B, M14-A, M36, M48-R, M51-A, and M51-B, each with its pin layout and housing code.
What is the largest connector shown and its housing code?: E15 is the largest, a 46-position connector with housing code FCI_ESP_46F_B.
What is the housing code for the E45 diagnostic connector?: E45 is labeled KET_DIAG_20F_B_BRK_GH, a 20-position connector.
How many pins does connector M11-A have and what is its part code?: M11-A is a 20-position connector (pins 1–20 with some unused cavities), housing code AMP_040M1_20F_B.
