1994-96 Ford Bronco Tailgate Carpet Panel Diagram - Pushpins & Access Cover

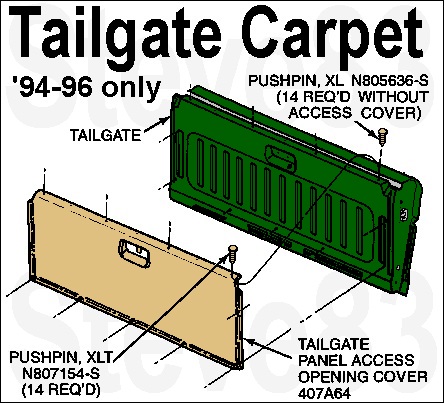

Tailgate carpet '94-96 exploded view with tailgate panel and pushpin part numbers

Tailgate Carpet ('94-96 only)
IF THE IMAGE IS TOO SMALL, click it.

These t/g carpet pushpins have coarser fins than the originals for the camper trim, but are interchangeable.
Head Dia.: 19/32"
Stem Dia.: 9/32"
Stem Lgth.: 27/32"

AuVeCo #.........Color
19371 ...............Blue (lapis)
19372 ...............Dark Gray (granite)
19373 ...............Light Gray (opal)
19374 ...............Tan (mocha)

To add a simple self-diagnostic capability, wire a 12V lamp across the safety switch terminals, and mount it in the tailgate shell above the lock cylinder in the inside sill (through a carpet retainer hole if present). If either control switch is activated, and the only thing preventing the glass from moving is the safety switch, the lamp will light and be visible to a person using either switch.

See also:
.

Owner caption November 2025 · Photo 0 of 5000

This document is an exploded parts diagram titled "Tailgate Carpet," explicitly noted as applying to '94-96 model years only. It illustrates the tailgate assembly of the vehicle along with the tailgate carpet/trim panel and its attaching hardware. The diagram shows the tailgate itself, the interior carpet panel positioned in front of it, and identifies two pushpin fastener variants: the XL pushpin, part number N805636-S, of which 14 are required when there is no access cover, and the XLT pushpin, part number N807154-S, also requiring 14 pieces. Additionally, the diagram labels the tailgate panel access opening cover, part/base number 407A64, which fits over an access opening in the tailgate panel. A reader can learn which fasteners and quantities are needed to attach the tailgate carpet panel for XL versus XLT trim levels, the part number for the access opening cover, and how the components fit together on the tailgate. The image bears a "Steve83" watermark indicating the scan's contributor. Note that although uploaded to a 1983 Bronco gallery, the document itself states applicability to 1994-1996 vehicles only.

This document covers 1994-1996, which may differ from this 1983 Ford Bronco.
