What years of Ford Bronco does this tailgate diagram cover?

The diagram is titled "'78-96 Bronco Tailgate Internals," covering 1978 through 1996 Broncos. It notes the access panel support is for '78-86 only.

What is the part number for the Bronco tailgate window regulator assembly?

The regulator assembly is shown as part number 9844000, with the motor mounted to it.

What torque is specified for the tailgate glass adjusting screws?

Both the screw & washer assembly (57472-S2) and the adjusting screw & washer are torqued to 9-14 N·m (6-11 ft-lbs).

What part numbers are shown for the tailgate glass hardware in View A?

View A shows bracket 422B18, retainer 234A36, spacer 234A44, rivet 385323-S100, plus the washer and glass.

What parts make up the tailgate lock in View C?

View C shows the switch assembly, cylinder 7143184-E, clip 14559-B, and door lock cylinder retainer 9843629.

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1174774

1978-1996 Ford Bronco Tailgate Internals Diagram - Window Regulator & Parts

'78-96 Bronco tailgate internals exploded view with part numbers and detail views

‹ ›

Reference · 1980-1986 BroncoAll 61 exploded parts diagrams

1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers

Ford 4.9L Intake Manifold Installation Diagram - Parts & Torque Specs (TSB 87-08-16)

1978-1996 Ford Bronco Tailgate Internals Diagram - Window Regulator & Parts

1994-96 Ford Bronco Tailgate Carpet Panel Diagram - Pushpins & Access Cover

Dana 44 IFS TTB Front Axle Exploded Diagram - Ford Bronco & F-150 4x4 Parts

1994-1997 Ford F-Series/Bronco RKE, Anti-Theft & Amp Module Mounting Diagram

Ford 8.8" Semi-Floating Rear Axle Exploded Diagram: Parts & Part Numbers

Dana 50 IFS Front Axle Exploded Parts Diagram - Ford Part Numbers

61exploded parts diagrams1980-1986 Ford Bronco More reference

Wiring diagram

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Service procedure

Schematic

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Manual page

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

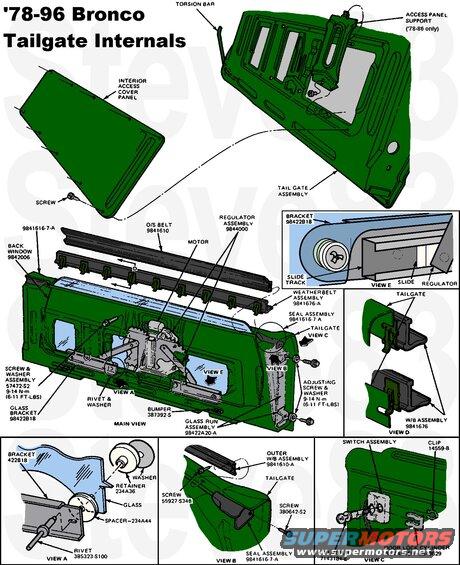

Tailgate Window Mechanisms
IF THE IMAGE IS TOO SMALL, click it.

The outside weatherbelt that wipes the glass (w/o defrost E0TZ9842006B, w/defrost F2TZ9842006A) is D8TZ-9841610-A and cost $24 in 1996. The inner (9841676 above) is F6TZ-9842072-AA and was $27. Use silicone spray lube on the flocked weatherbelts & glass runs.

The slides & tracks ON THE GLASS should be kept clean & dry because the plastic slides are their own lubricant. But if you must use grease, the best grease for them would be PTFE:

Graphite paint in the channels is even better because it dries.

Reassemble in this order:
1. pressure wash & allow to dry in sun for a day or 3
2. undercoat inside bottom (to prevent rust) & allow to dry for a day or 3
3. lock cylinder, latches, center mechanism, inside handle, bottom bumpstops, regulator w/motor
4. switch & harness, outside trim panel (if applicable)
5. side tracks
6. glass (F2TZ9842006A)
7. glass tracks, weatherbelts
8. end seals, rain shield
9. access panel

Part of 1980-1986 Ford Bronco Exploded Parts Diagrams

Owner caption November 2025 · Photo 6466 of 6546

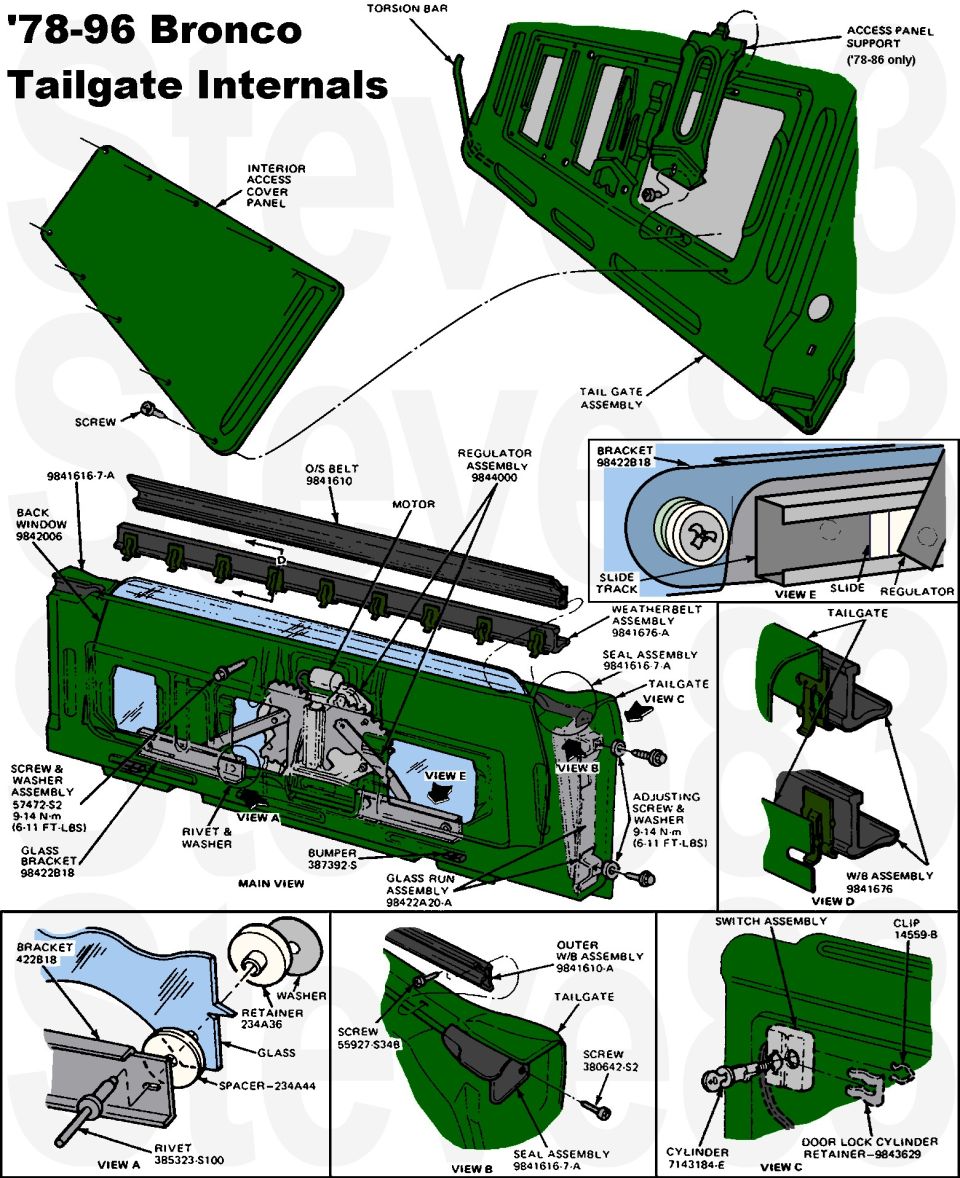

This is an exploded parts / cutaway diagram titled "'78-96 Bronco Tailgate Internals," showing the internal components of the Ford Bronco tailgate for model years 1978-1996. The main view illustrates the tailgate assembly with the interior access cover panel removed, exposing the back window glass (9842006), power window regulator assembly (9844000) with motor, outer belt weatherstrip (O/S belt 9841610), weatherbelt assembly (9841676-A), seal assembly (9841616-7-A), glass run assembly (98422A20-A), glass brackets (98422B18), bumper (387392-S), and the torsion bar and access panel support (the support is noted as '78-86 only). Detail insets show: View A (glass bracket, rivet 385323-S100, washer, retainer 234A36, spacer 234A44), View B (outer weatherbelt assembly 9841610-A and mounting screws 55927-S348, 380642-S2), View C (tailgate lock switch assembly, lock cylinder 7143184-E, clip 14559-B, door lock cylinder retainer 9843629), View D (weatherbelt assembly 9841676 at tailgate corner), and View E (bracket, slide track, slide, and regulator engagement). Torque values of 9-14 N·m (6-11 ft-lbs) are given for the screw & washer assembly (57472-S2) and adjusting screws. Useful for identifying part numbers and assembly relationships when servicing the Bronco power tailgate window.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What years of Ford Bronco does this tailgate diagram cover?: The diagram is titled "'78-96 Bronco Tailgate Internals," covering 1978 through 1996 Broncos. It notes the access panel support is for '78-86 only.
What is the part number for the Bronco tailgate window regulator assembly?: The regulator assembly is shown as part number 9844000, with the motor mounted to it.
What torque is specified for the tailgate glass adjusting screws?: Both the screw & washer assembly (57472-S2) and the adjusting screw & washer are torqued to 9-14 N·m (6-11 ft-lbs).
What part numbers are shown for the tailgate glass hardware in View A?: View A shows bracket 422B18, retainer 234A36, spacer 234A44, rivet 385323-S100, plus the washer and glass.
What parts make up the tailgate lock in View C?: View C shows the switch assembly, cylinder 7143184-E, clip 14559-B, and door lock cylinder retainer 9843629.
