Diagram of cruise control servo and vacuum reservoir hose and wi…

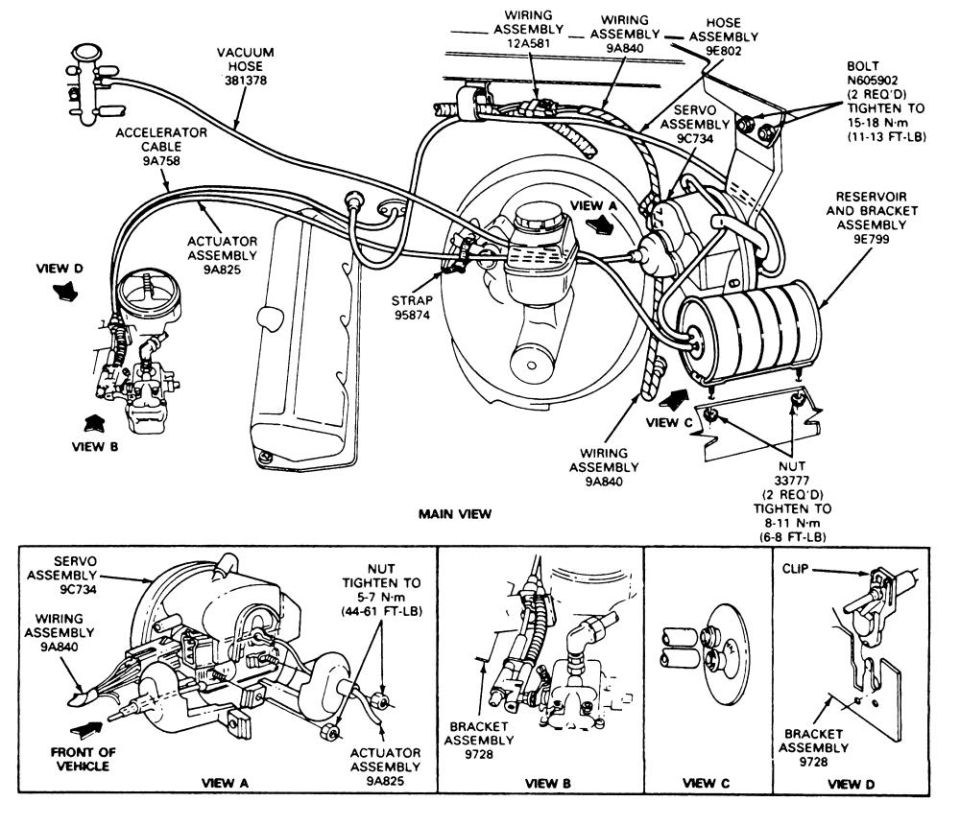

Diagram of cruise control servo and vacuum reservoir hose and wiring routing with torque specs
Diagram of cruise control servo and vacuum reservoir hose and wiring routing with torque specsOriginal file
Diagram of cruise control servo and vacuum reservoir hose and wiring routing with torque specs

DiagramsView all 474

Ford F-Series drive axle chart listing models, axle types and capacities for 1976-86 Ford rear axle code and ratio chart cross-referencing two-letter codes against model years 76-86 Dana axle identification tag diagram showing ratio and part number layout 1983 Ford Bronco photo Throttle position sensor part matrix for passenger cars listing engines, service part numbers, idle voltage Throttle position sensor part matrix for light trucks listing engines, service part numbers, idle voltage Diagram of transmission kickdown and servo vacuum cable routing for overdrive and non-overdrive setups Diagram of cruise control servo and vacuum reservoir hose and wiring routing with torque specs 1996 Ford Bronco data link connector C201 pinout diagram with circuit function chart Service manual diagnostic table with Condition, Possible Cause and Action columns for speed control Line diagram labeled Driven Gear and VSS showing a speed sensor component Line diagram of an air bag sliding contact and retaining clips in a steering column Exploded parts diagram of a steering column with dozens of numbered callouts Wiring diagram labeled '1992 Bronco Courtesy Lamps' showing dome and door lamp circuits 1983 Ford Bronco photo Ford automatic transmission identification chart with Borg Warner, C3, C4, C6 and 3-speed case diagrams 474photos in this albumView all

92 Cruise Diesel
