Wiring diagram for dual horn relay setup with SPDT switch select…

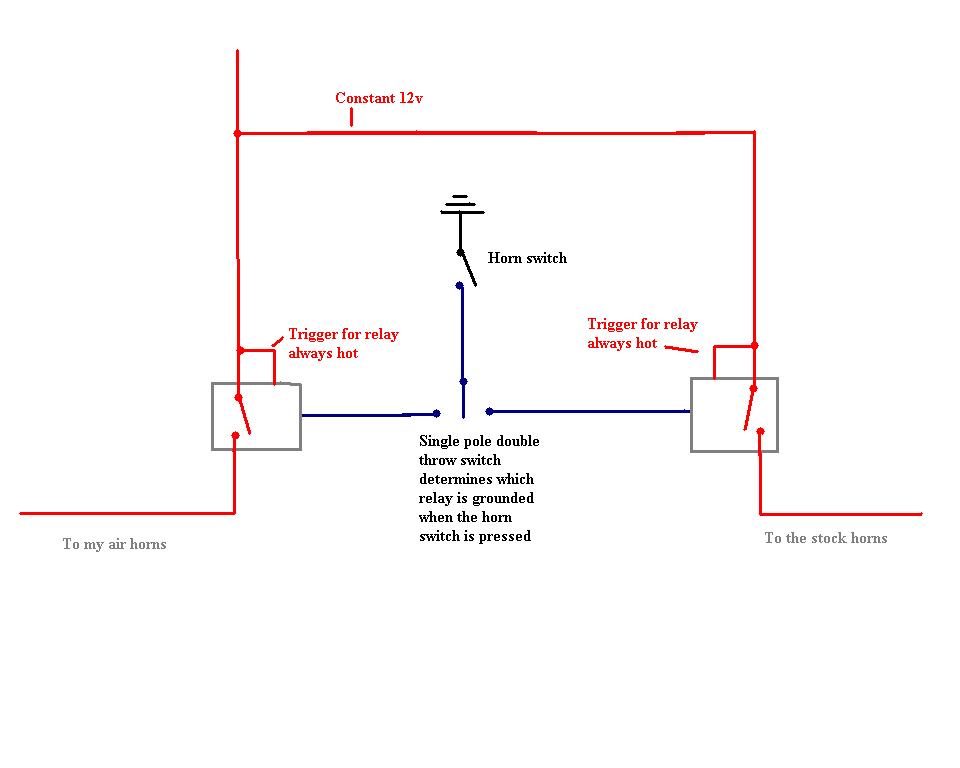

Wiring diagram for dual horn relay setup with SPDT switch selecting air or stock horns.

How I wired my horn circuit using relays
