What vehicle does this exploded parts diagram cover?

The page is from a 1973/79 Ford Cars illustration catalog (Section 160) and the diagram itself is labeled "Fenders, Aprons and Related Parts, 1978/ Bronco."

What are the part numbers for the front fenders on a 1978 Bronco?

The diagram calls out fender basic numbers 16005 and 16006 (left and right front fenders).

What part number is shown for the radiator support?

The radiator core support assembly at the bottom of the diagram is labeled 16138.

What fastener is used repeatedly in this front clip assembly?

Bolt/screw 384931-S (BB-867-K) appears at multiple attachment points on the fenders and aprons, along with hardware such as 379670-S (MM-192-AB) and 55734-S (M-96-EJ).

What do the triangle symbols on the callouts mean?

A footnote states "▲ REFER TO BODY GROUP NUMBER" for parts marked with the triangle symbol, such as 02294 and 111B80.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “The Bronco”/ Photo supermotors.net/registry/media/254825

1978-79 Ford Bronco Fender, Apron & Radiator Support Parts Diagram

Exploded 1973-79 Ford fenders and aprons diagram with part numbers

‹ ›

Exploded parts illustration of 1973-79 Ford fenders, aprons and related sheet metal with detailed part numbers.

AI caption October 2005 · Photo 122 of 277

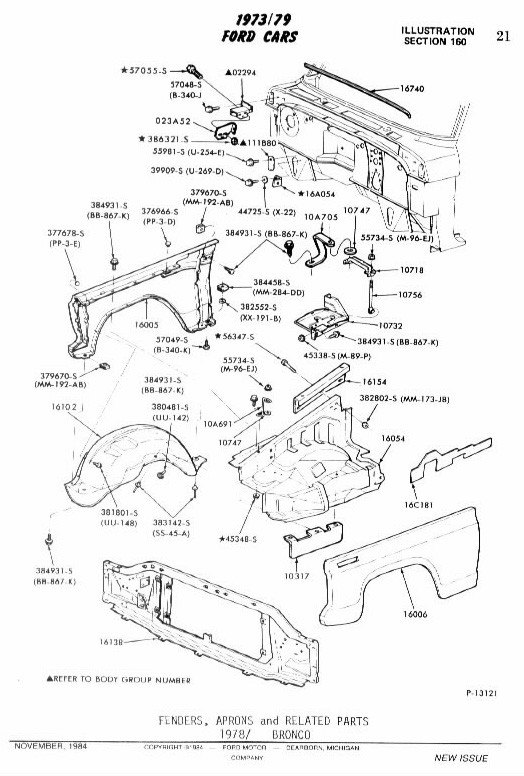

This is a scanned page (page 21, Illustration Section 160) from a Ford Motor Company parts illustration catalog covering 1973–79 Ford cars, dated November 1984 and marked "New Issue." The exploded diagram is titled "Fenders, Aprons and Related Parts, 1978/ Bronco" and depicts the front clip sheet metal of a 1978-and-later Ford Bronco. Major components identified by basic part numbers include the front fenders (16005, 16006), inner fender aprons (16054, 16102), radiator support (16138), apron/support brackets (16154, 16C181, 10317), hood-area components (16740, 16A054), and hood latch/support hardware (10A705, 10747, 10718, 10756, 10732, 10A691). Dozens of fastener and hardware part numbers with their standard suffix codes are called out, such as 384931-S (BB-867-K), 379670-S (MM-192-AB), 55734-S (M-96-EJ), 383142-S (SS-45-A), 380481-S (UU-142), and 381801-S (UU-148). A footnote instructs readers marked with a triangle symbol to "refer to body group number," and the illustration carries reference number P-13121. The page is useful for identifying and ordering fender, apron, radiator support, and related attaching hardware part numbers for a 1978–79 (and similar) Ford Bronco front end.
