1992-1996 Ford Bronco Headlight Assembly Exploded Diagram - Mounting & Wiring

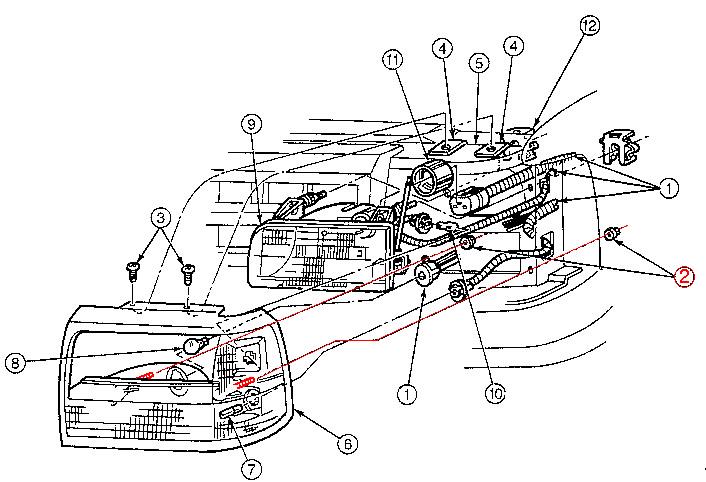

This document is an exploded parts diagram showing the front headlight assembly and related components for a Ford Bronco/F-Series front end (filed by the uploader as covering 1992–1996). The illustration depicts the combination headlamp/park lamp housing removed from the vehicle, with two mounting screws (callout 3), bulbs and sockets (callouts 7 and 8), the housing itself (callout 6), and the inner headlamp support structure (callout 9). Behind the grille/radiator support area, the diagram shows the wiring harness and connectors (callout 1), retaining nuts highlighted in red (callout 2) that secure the lamp assembly studs, upper radiator support attachment points (callouts 4 and 5), additional harness or bracket components (callouts 10 and 11), and a harness clip (callout 12). The diagram uses numbered callouts only — no legend, part names, part numbers, or torque specifications are printed on this page, so the reader must reference a companion legend page (likely elsewhere in the same album) to identify each numbered item. The drawing is useful for understanding how the headlight assembly attaches (screws from the front, nuts from behind) and how the front lighting harness routes across the radiator support.
