Ford IAC Valve Cutaway Diagrams - Hitachi, Vented Hitachi & NipponDenso

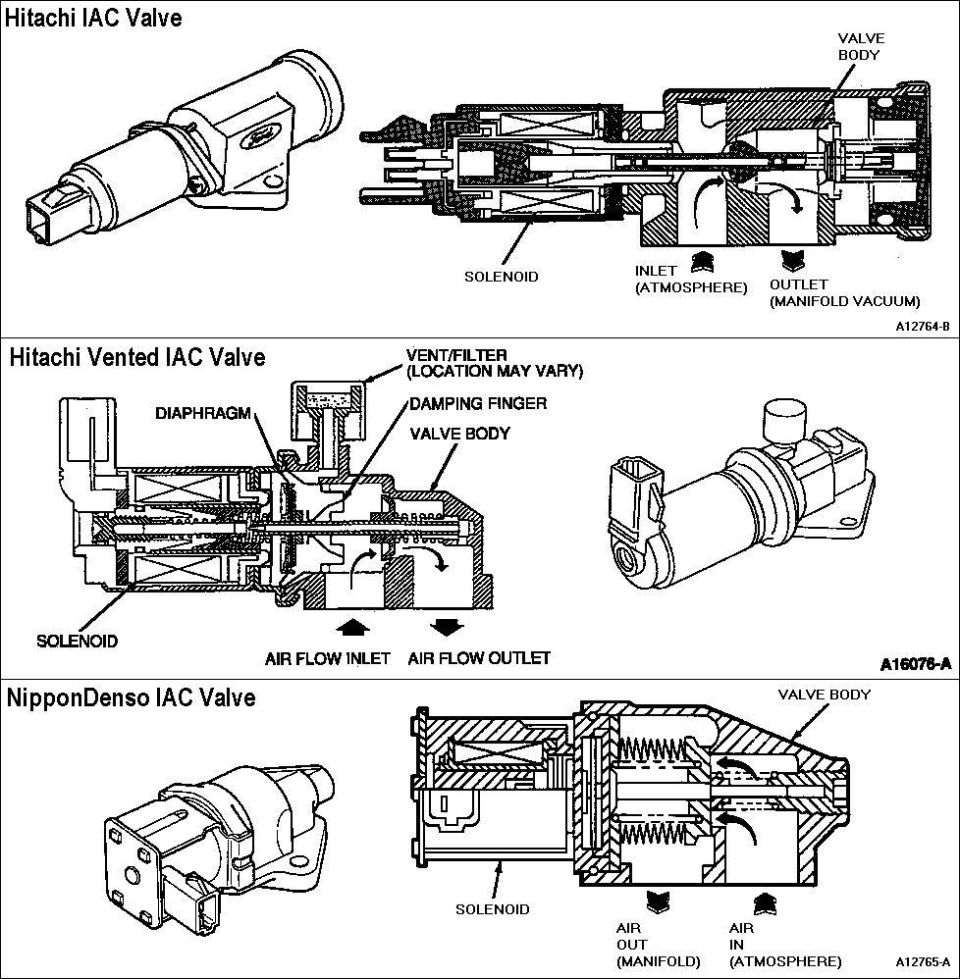

Idle air control valve cutaways compared: Hitachi, Hitachi vented, and NipponDenso IAC valves

‹ ›

Comparison cross-sections of three idle air control (IAC) valves: Hitachi, Hitachi vented (with damping finger/filter), and NipponDenso, each showing solenoid, valve body, atmosphere inlet and manifold-vacuum outlet.

AI caption October 2005 · Photo 128 of 277

This document is a technical illustration page showing cutaway and external views of three types of Idle Air Control (IAC) valves used on Ford vehicles: the Hitachi IAC valve, the Hitachi Vented IAC valve, and the NipponDenso IAC valve. Each section pairs an external perspective drawing of the valve with a detailed cross-section (cutaway) diagram showing internal construction and airflow paths. The Hitachi IAC valve cutaway labels the solenoid, valve body, atmospheric inlet, and manifold vacuum outlet. The Hitachi Vented IAC valve cutaway additionally identifies a vent/filter (whose location may vary), a diaphragm, a damping finger, the valve body, the solenoid, and the air flow inlet and outlet. The NipponDenso IAC valve cutaway labels the solenoid, valve body, air out (to manifold), and air in (from atmosphere), with arrows indicating airflow direction through the valve. Figure reference numbers A12764-B, A16076-A, and A12765-A appear on the three illustrations. A reader can learn how each IAC valve variant is constructed internally, how the solenoid meters air from atmosphere to the intake manifold to control idle speed, and how to visually distinguish the three valve designs. No years, models, torque specs, or part numbers are stated in the document itself.
