What does this diagram cover?

It is an exploded illustration of the radiator grille and related parts for the 1978/ Ford Bronco, from Ford's Illustration Section 82 (page 25) covering 1973/79 Ford vehicles.

What is the Ford basic part number for the grille assembly?

The grille is shown as basic part number 8200 in the exploded view.

When was this illustration published?

What radiator support parts are shown?

Radiator support and related front structure parts shown include basic numbers 16138, 16864, 16874, 16700, 13015, 13064, and 13008.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “The Bronco”/ Photo supermotors.net/registry/media/254832

1978-1979 Ford Bronco Radiator Grille Exploded Parts Diagram & Part Numbers

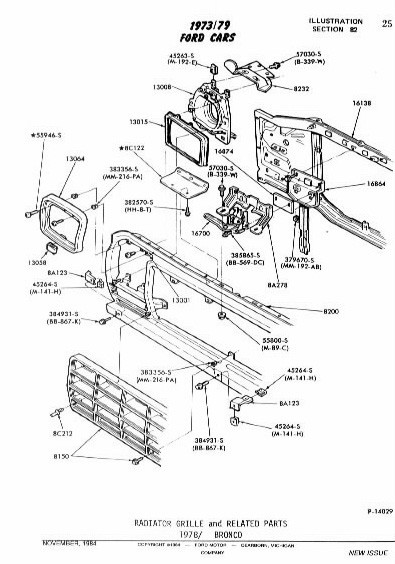

Exploded parts catalog diagram of 1973-79 Ford radiator grille and related parts

‹ ›

Parts catalog exploded view of the radiator grille and related parts for 1973-79 Ford cars with part numbers.

AI caption October 2005 · Photo 127 of 277

This is a page from a Ford Master Parts Catalog illustration section (Illustration Section 82, page 25, covering 1973/79 Ford cars/trucks), dated November 1984 and marked 'NEW ISSUE' with plate number P-14029. It presents an exploded parts diagram titled 'Radiator Grille and Related Parts' for the 1978-and-later (1978/) Ford Bronco. The drawing shows the front grille assembly (8200), grille surround/opening panel, radiator support structure (16138, 16864), headlight door/bezel components (13064, 13008, 13015, 16874, 16700), ornament/emblem (8232), lower valance and related brackets (8A123, 8A278, 8C212, 8150, 8C122), along with the attaching hardware: screws, nuts, and fasteners identified by service part numbers such as 45263-S (M-192-E), 45264-S (M-141-H), 57030-S (B-339-W), 53946-S, 55800-S (M-89-C), 383356-S (MM-216-PA), 382570-S (HH-B-T), 384931-S (BB-867-K), 385865-S (BB-569-DC), and 379670-S (MM-192-AB). A reader can learn the relative assembly positions of the grille, headlight buckets, radiator core support, and front-end trim, and can identify the Ford basic part numbers and fastener specification codes needed to order or replace grille and front clip components on a 1978-1979 full-size Bronco.

This document covers 1973-1979, which may differ from this 1992 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does this diagram cover?: It is an exploded illustration of the radiator grille and related parts for the 1978/ Ford Bronco, from Ford's Illustration Section 82 (page 25) covering 1973/79 Ford vehicles.
What is the Ford basic part number for the grille assembly?: The grille is shown as basic part number 8200 in the exploded view.
What fastener part numbers are used to attach the grille components?: The diagram calls out fasteners including 45263-S (M-192-E), 45264-S (M-141-H), 57030-S (B-339-W), 53946-S, 55800-S (M-89-C), 383356-S (MM-216-PA), 382570-S (HH-B-T), 384931-S (BB-867-K), 385865-S (BB-569-DC), and 379670-S (MM-192-AB).
When was this illustration published?: It is dated November 1984, copyright 1984 Ford Motor Company, Dearborn, Michigan, and marked as a New Issue with plate number P-14029.
What radiator support parts are shown?: Radiator support and related front structure parts shown include basic numbers 16138, 16864, 16874, 16700, 13015, 13064, and 13008.
