1987 Ford Bronco Fuse Panel Diagram - Fuse Positions, Amp Ratings & Colors

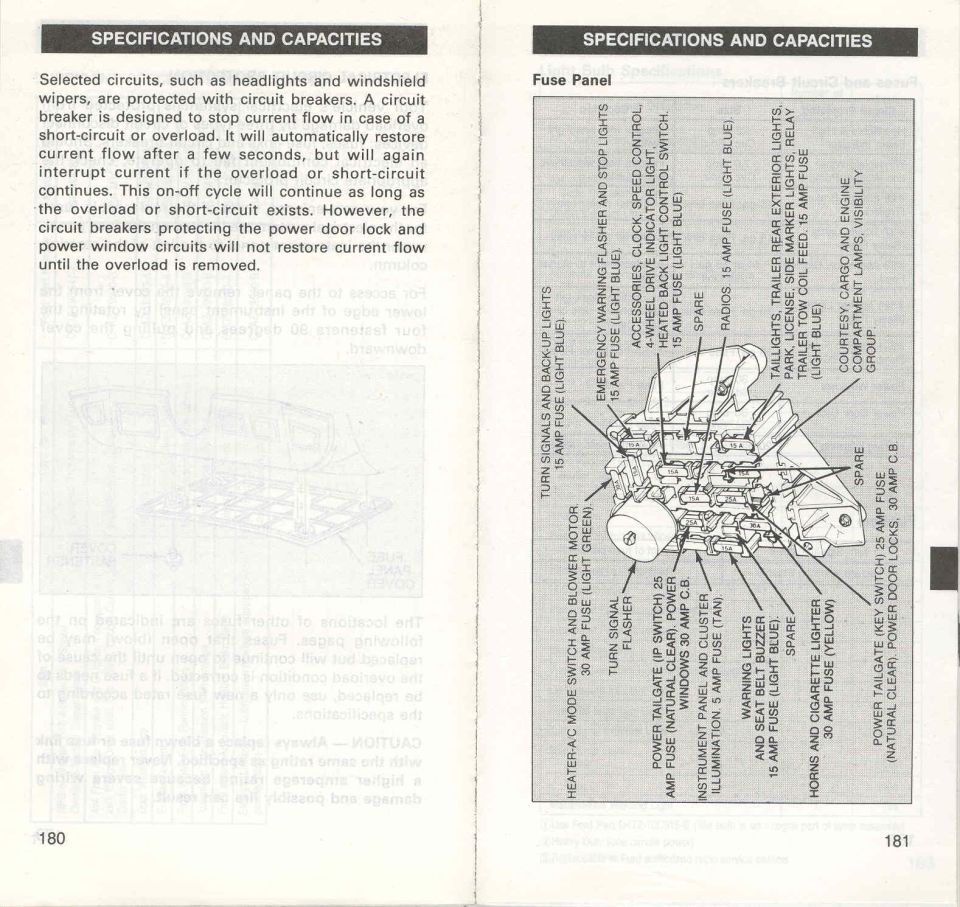

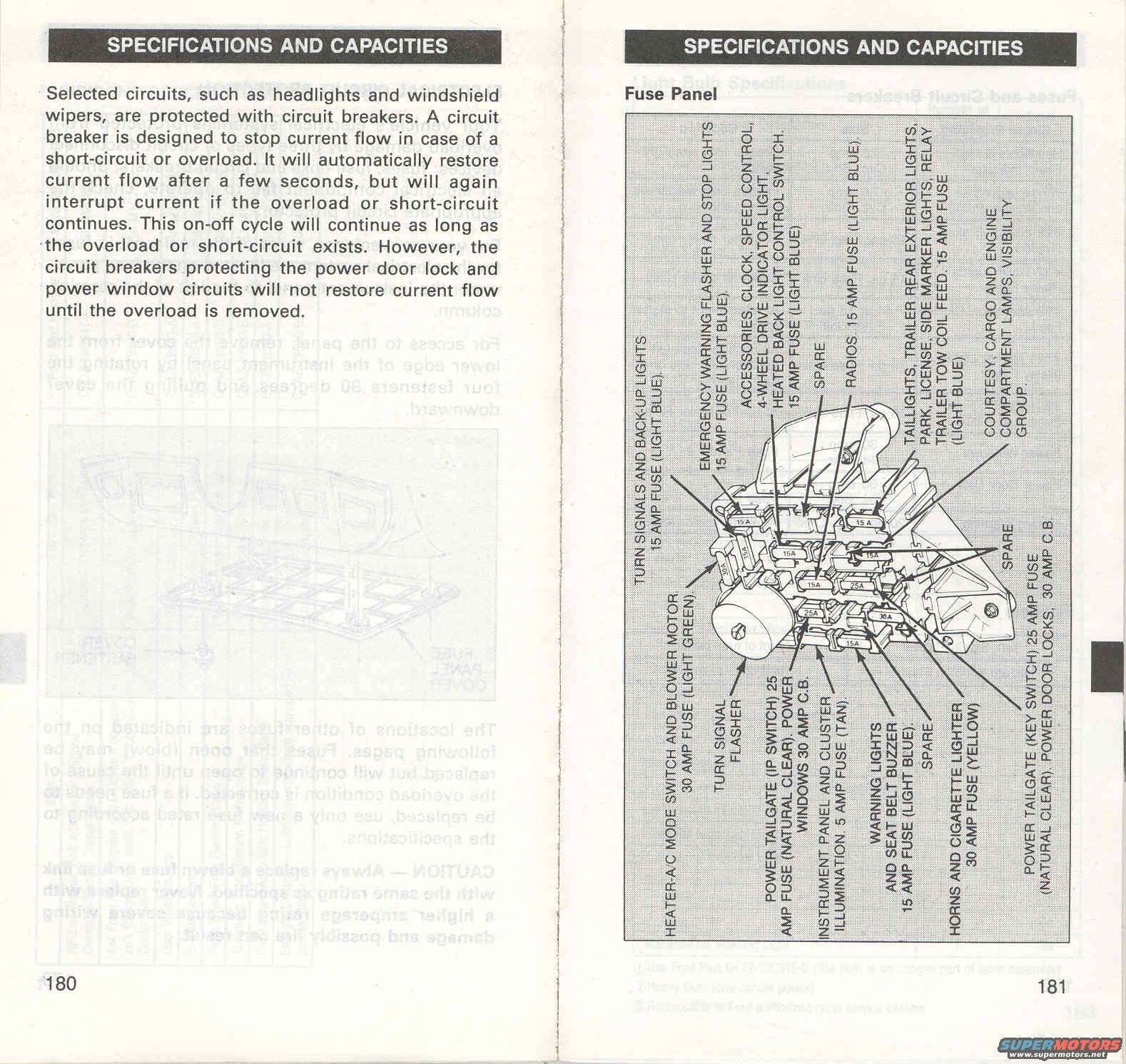

This is a two-page scan (pages 180-181) from a Ford owner's guide section titled 'Specifications and Capacities'. Page 180 explains that selected circuits such as headlights and windshield wipers are protected by circuit breakers, which automatically interrupt and restore current during a short-circuit or overload, cycling on and off until the fault is corrected; the circuit breakers for the power door locks and power window circuits, however, do not restore current until the overload is removed. Page 181 presents a labeled fuse panel diagram identifying each fuse position, amperage, and fuse color: turn signals/back-up lights (15A light blue), emergency warning flasher and stop lights (15A light blue), accessories/clock/speed control/4WD indicator/heated back light control (15A light blue), radios (15A light blue), taillights/trailer/park/license/side marker lights and trailer tow relay coil feed (15A light blue), courtesy/cargo/engine compartment lamps, heater-A/C blower (30A light green), power tailgate key switch (25A natural clear) with power door locks 30A C.B., power tailgate IP switch (25A) with power windows 30A C.B., instrument panel illumination (5A tan), warning lights/seat belt buzzer (15A light blue), horns and cigarette lighter (30A yellow), plus the turn signal flasher location and several spare positions. A reader can locate and identify every interior fuse and its rating.
