What fuse powers the clearance and side marker lights in this diagram?

Fuse 13, rated 15A, in the fuse box supplies the circuit via a W (white) wire.

What wire color feeds the clearance and side marker lamps after the lighting switch?

R/Y (red/yellow) wires run from lighting switch pin 8 of connector E40 to all four lamps.

Which connectors serve the front lamps in this circuit?

E26 is the LH front side marker light, E27 the LH front combination (clearance) light, E04 the RH front combination (clearance) light, and E07 the RH front side marker light.

How do the lamps ground in this diagram?

Each lamp grounds through a B (black) wire to chassis ground points marked 6 and 1.

What do the numbered legend symbols mean?

[1] = 2-door CAMI-built, [2] = 2-door IWATA-built and 4-door, [3] = IWATA, [4] = CAMI, indicating which wiring variant applies by body style and assembly plant.

Home/ Registry/ Suzuki/ Samurai/ 1986-1995/ “Little Blue”/ Photo supermotors.net/registry/media/420694

Suzuki Clearance & Side Marker Lamp Wiring Diagram - Fuse 13 15A, E40 Switch

Front lighting wiring diagram with lighting switch, side marker and combination lights

‹ ›

Reference · 1986-1995 SamuraiAll 73 wiring diagrams

Suzuki Samurai TP Sensor (TPS) Wiring Diagram - ECM Pins B6, B7, A18, B15

Suzuki Samurai ECT Sensor Wiring Diagram - ECM Terminals B9/B15, Codes 14 & 21

Suzuki Samurai Tail Lamp Wiring Diagram - Side Marker & License Plate Lights

Suzuki Clearance & Side Marker Lamp Wiring Diagram - Fuse 13 15A, E40 Switch

Suzuki Samurai Rear Wiper & Washer Motor Wiring Diagram - Switch, Fuses

Suzuki Samurai Radio Wiring Diagram - Fuse, Speaker & Illumination Circuits

Suzuki Samurai Ignition Switch & Fuse Box Power Distribution Wiring Diagram

Suzuki Samurai Power Distribution Wiring Diagram - Main Fuse, Battery, Fuses

Connector A1: C204 pinout with wire color, circuit and swap notes for pins 1-18

Suzuki Samurai 8v EFI Swap ECM Connector C2 Pinout - Wire Colors & Circuits

Suzuki Sidekick/Geo Tracker 8v EFI Swap into Samurai - ECM C1 Pinout & Wiring

Engine control module wiring diagram with main relay, fuel pump relay, heated oxygen sensor and IAC valve

73wiring diagrams1986-1995 Suzuki Samurai More reference

Schematic

1986 Suzuki Samurai Fuse Box Diagram - Main Fuse Block & Fuse Panel Layout

Fuse chart

6th annual Pine Barrens Cleanup flyer for Wharton State Forest, October 28, 2007

Brochure

Suzuki Samurai 8v EFI Swap Wiring - Pin Colors & 8A-20 Diagram Index (Pg 4)

Manual page

Suzuki Samurai Mitsubishi 12V Starter Data Plate - M3T41781 / 31100-83030

Spec plate

Vacuum routing

1987 Suzuki Samurai Fabrication Template - Hand-Drawn Full-Size Layout w/ Dims

Blueprint

Photo of Purple Compact Car Front Wheel & Fender (Misfiled Samurai Doc Scan)

Exploded parts

Trail Tough Samurai Twisted T/T shift shaft installation instructions beside bagged shift shafts and gasket

Service procedure

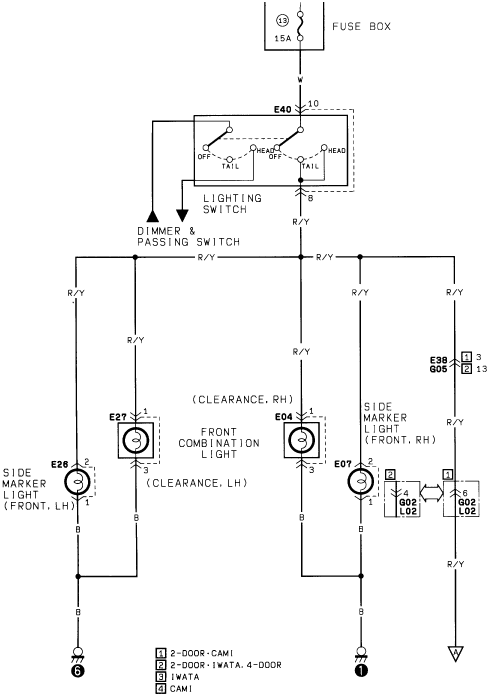

Wiring diagram of the front lighting circuit showing the lighting switch, front combination lights and side marker lights with R/Y wires.

Part of 1986-1995 Suzuki Samurai Wiring Diagrams

AI caption August 2006 · Photo 62 of 86

This is a scanned wiring diagram for the tail/clearance (parking) lamp circuit, showing power flow from fuse 13 (15A) in the fuse box through wire color W (white) to connector E40 pin 10, into the lighting switch (positions OFF, TAIL, HEAD) with a tap to the dimmer & passing switch. From lighting switch pin 8, an R/Y (red/yellow) wire feeds four parallel branches: the left side marker light (front, LH) at connector E26, the left front combination light (clearance, LH) at E27, the right front combination light (clearance, RH) at E04, and the right side marker light (front, RH) at E07. Additional connector references include E38/G05 (pins 3 and 13) and G02/L02 (pins 4 and 6). All lamps ground through B (black) wires to chassis ground points marked 6 and 1. A legend clarifies variant applicability: [1] 2-door CAMI-built, [2] 2-door IWATA-built and 4-door, [3] IWATA, [4] CAMI. Readers can learn the fuse rating, wire colors, connector IDs and pin numbers, and how the circuit differs between 2-door and 4-door, CAMI- and IWATA-built vehicles.
