What fuse powers the transmission control circuit in this diagram?

Fuse position 24, a 15A fuse in the fuse box, which feeds the Main Relay via B/R and B/W wires.

What wire colors run from the Transmission Control Module to the shift solenoids?

G/R, G/Y, and G wires run from TCM connector E43 pins 11, 12, and 13 through connectors E55/C11 and C08/P01 to the shift solenoid valves and TCC solenoid valve at connector P04.

Where are the vehicle speed sensors connected?

One vehicle speed sensor is on the transmission at connector P06 (W and O wires from TCM pins 2 and 3 via E55/C11 and C08/P01), and a second vehicle speed sensor is in the combination meter, connected through E37/G06 pin 22 (Y wire) and G09/G11, with B/Y wires to ground point 10.

Which connector pins does the Engine Control Module use in this circuit?

The ECM connects at E34 pin 10 and at E33 pins 10, 16, and 7, with P/Bl and P/G wires linking to the cruise control unit and the transmission control module.

What solenoids does the TCM control according to this diagram?

The TCM controls the shift solenoid valves and the TCC (torque converter clutch) solenoid valve, connected at P04 pins 1, 2, and 3, each internally grounded.

Home/ Registry/ Suzuki/ Samurai/ 1986-1995/ “Little Blue”/ Photo supermotors.net/registry/media/420704

Suzuki A/T Transmission Control Module Wiring Diagram - TCM, Shift Solenoids, VSS

Transmission control wiring diagram with vehicle speed sensors and shift solenoid valves

‹ ›

Reference · 1986-1995 SamuraiAll 73 wiring diagrams

Suzuki Warning Lamp Wiring Diagram - Charge, Oil, Check Engine Lamps

Suzuki Samurai Warning Controller Wiring Diagram - Seat Belt & Door Switches

Suzuki Samurai VSS Wiring Diagram - Vehicle Speed Sensor to ECM Pin A7

Suzuki A/T Transmission Control Module Wiring Diagram - TCM, Shift Solenoids, VSS

Suzuki A/T Transmission Control Module & 4WD Switch Wiring Diagram

Suzuki Automatic Transmission Control Module Wiring Diagram - Shift Switch & TCM

Suzuki A/T Shift Lock & Overdrive Switch Wiring Diagram - TCM Circuit

Suzuki Samurai TP Sensor (TPS) Wiring Diagram - ECM Pins A18/B15, Wire Colors

Connector A1: C204 pinout with wire color, circuit and swap notes for pins 1-18

Suzuki Samurai 8v EFI Swap ECM Connector C2 Pinout - Wire Colors & Circuits

Suzuki Sidekick/Geo Tracker 8v EFI Swap into Samurai - ECM C1 Pinout & Wiring

Engine control module wiring diagram with main relay, fuel pump relay, heated oxygen sensor and IAC valve

73wiring diagrams1986-1995 Suzuki Samurai More reference

Schematic

1986 Suzuki Samurai Fuse Box Diagram - Main Fuse Block & Fuse Panel Layout

Fuse chart

6th annual Pine Barrens Cleanup flyer for Wharton State Forest, October 28, 2007

Brochure

Suzuki Samurai 8v EFI Swap Wiring - Pin Colors & 8A-20 Diagram Index (Pg 4)

Manual page

Suzuki Samurai Mitsubishi 12V Starter Data Plate - M3T41781 / 31100-83030

Spec plate

Vacuum routing

1987 Suzuki Samurai Fabrication Template - Hand-Drawn Full-Size Layout w/ Dims

Blueprint

Photo of Purple Compact Car Front Wheel & Fender (Misfiled Samurai Doc Scan)

Exploded parts

Trail Tough Samurai Twisted T/T shift shaft installation instructions beside bagged shift shafts and gasket

Service procedure

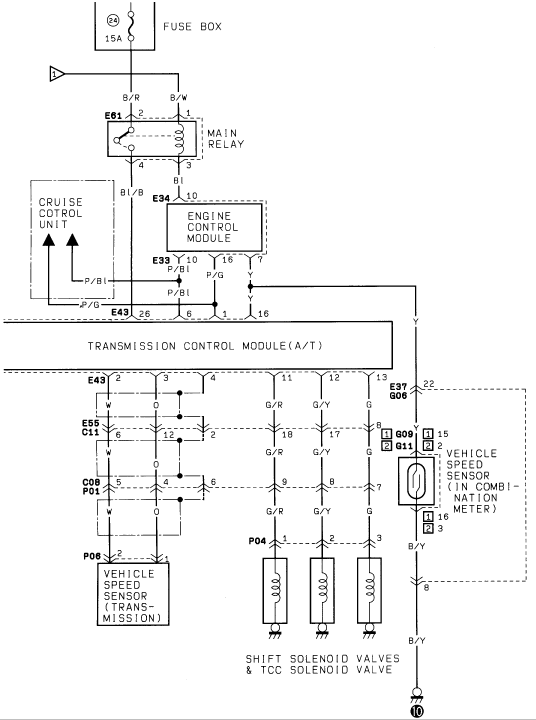

Wiring diagram of the A/T control circuit showing main relay, vehicle speed sensors and shift and TCC solenoid valves.
