How many #10-32 hex nuts does this top kit use?

Item 17 lists #10-32 Hex Nut, 45 Required, matching the 45 #10-32 machine screw studs (Item 16).

What size hex bolts and lock nuts are used for the bows?

Item 10 calls for six 1/4-20 x 1-1/2" hex bolts and Item 11 calls for six matching 1/4-20 lock nuts.

How many footman loops are included?

Item 18 shows the Footman Loop with 2 Required.

Is the printed quantity for the #8 x 1/2" oval head screws correct?

The document prints '45 Required' for Item 19, but a handwritten note on the scan says '4 not 45,' indicating a correction to only 4 screws.

Which parts are highlighted on this diagram?

Two items are circled in red: Item 6 (Bow Mount, 4 Required) and Item 9 (Bow Release, 2 Required).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1993 Ford Bronco/ Photo supermotors.net/registry/media/497981

Ford Bronco Soft Top Parts Identification Diagram - Bows, Rails & Hardware List

Parts identification sheet showing winch-mount components with item numbers

‹ ›

Parts-identification drawing listing numbered bars, bolts, nuts and brackets for a winch or bumper assembly.

AI caption March 2007 · Photo 613 of 1268

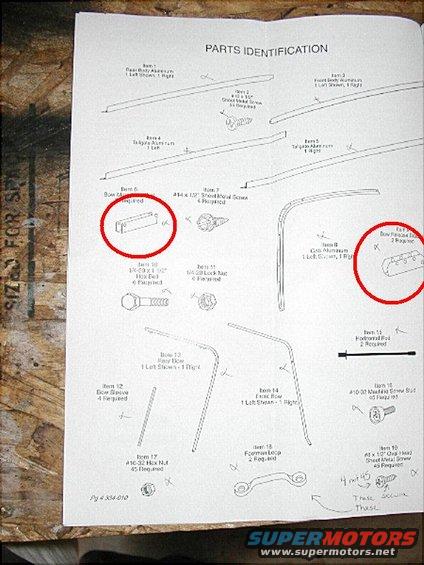

This document is a single 'Parts Identification' page (page number 4-334-010) from an installation or assembly manual for an aftermarket soft/hard top kit, uploaded as reference for a 1993 Ford Bronco. It shows an exploded-view style illustration identifying 19 numbered parts with quantities: aluminum body rails (rear body, front body, tailgate left and right, and cab aluminum pieces, each supplied in left and right versions), bow hardware (bow mounts, bow release parts, bow sleeves, rear and front bows, horizontal rods), and all fasteners including #10 x 1/2" sheet metal screws (34 required), #14 x 1/2" sheet metal screws (4 required), 1/4-20 x 1-1/2" hex bolts and 1/4-20 lock nuts (6 each), #10-32 machine screw studs and #10-32 hex nuts (45 each), footman loops (2 required), and #8 x 1/2" oval head sheet metal screws (45 required). Two parts — the bow mount (Item 6) and bow release (Item 9) — are circled in red by the uploader. A handwritten note corrects the Item 19 quantity to '4 not 45.' The document itself states no year, make, or model, so applicability to the 1993 Bronco is based on the uploader's claim.
