Custom Winch Bumper Center Section Sketch - 2x6 Tubing & Gusset, Ford Bronco

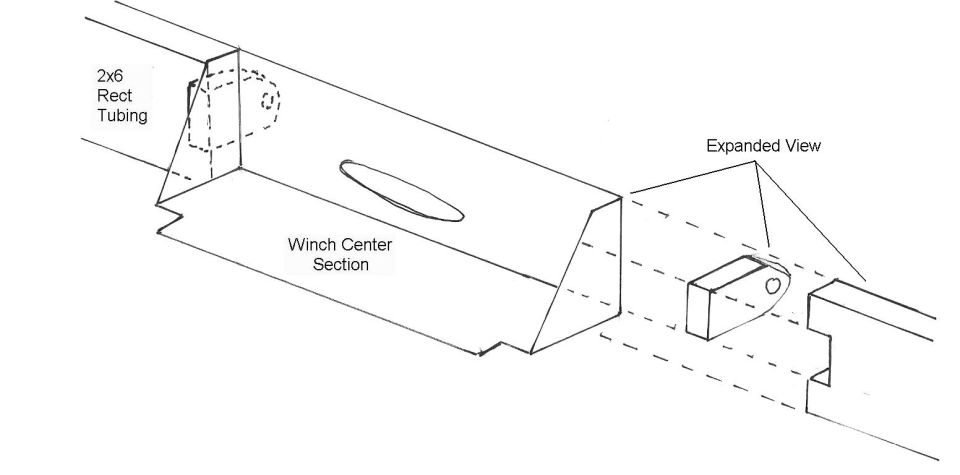

This document is a hand-drawn technical sketch (isometric/exploded view) showing the design of a custom winch bumper center section, apparently part of a homemade bumper fabrication project for a Ford Bronco. The drawing depicts a long piece of 2x6 rectangular steel tubing serving as the main crossmember, with a fabricated trapezoidal box structure labeled 'Winch Center Section' welded onto its face. The center section features an oval slot cut into its top face (likely a fairlead or cable pass-through opening) and angled/gusseted end plates. On the right side of the sketch, an 'Expanded View' callout shows an exploded detail of a small tab or clevis-style mounting bracket with a hole, illustrating how it fits into a notched cutout in the end of the rectangular tubing (shown with dashed hidden lines). Dashed lines throughout indicate hidden geometry and the internal placement of components. The drawing contains no dimensions other than the '2x6' tubing size, no part numbers, no dates, and no vehicle-specific applicability information. It serves as a conceptual fabrication reference showing how the winch center section, tubing, and mounting tab interrelate before welding.
