1992-94 Ford Bronco/F-Series RH Instrument Panel Tab Repair - I.S. 6551 Sheet 3

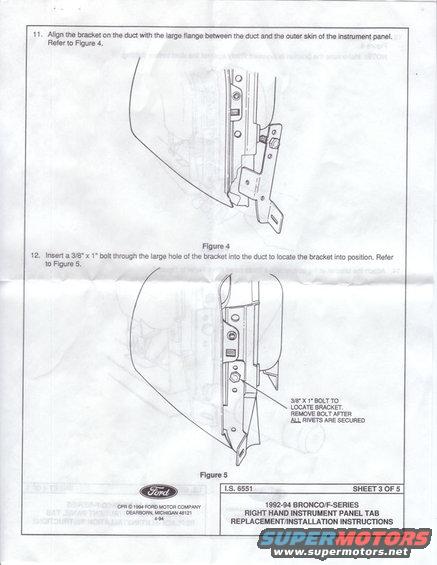

This document is Sheet 3 of 5 of Ford instruction sheet I.S. 6551, titled "1992-94 Bronco/F-Series Right Hand Instrument Panel Tab Replacement/Installation Instructions," copyrighted 1994 by Ford Motor Company, Dearborn, Michigan (dated 4-94). This page covers steps 11 and 12 of the procedure. Step 11 instructs the installer to align the bracket on the duct with the large flange positioned between the duct and the outer skin of the instrument panel, referring to Figure 4. Step 12 instructs inserting a 3/8" x 1" bolt through the large hole of the bracket into the duct to locate the bracket into position, referring to Figure 5. Figure 4 shows the bracket aligned on the duct at the instrument panel; Figure 5 shows the bracket with the locating bolt installed, with a callout noting the 3/8" x 1" bolt is used only to locate the bracket and should be removed after all rivets are secured. A reader learns the correct bracket alignment and temporary bolt-locating technique used in Ford's official right-hand instrument panel tab repair for 1992-94 Bronco and F-Series trucks. This is one page of a five-sheet set; other pages in the album likely contain the remaining steps.
