Ford 5.4L V8 Engine Exploded Diagram - Block, Crankshaft, Pistons & Oil Pan

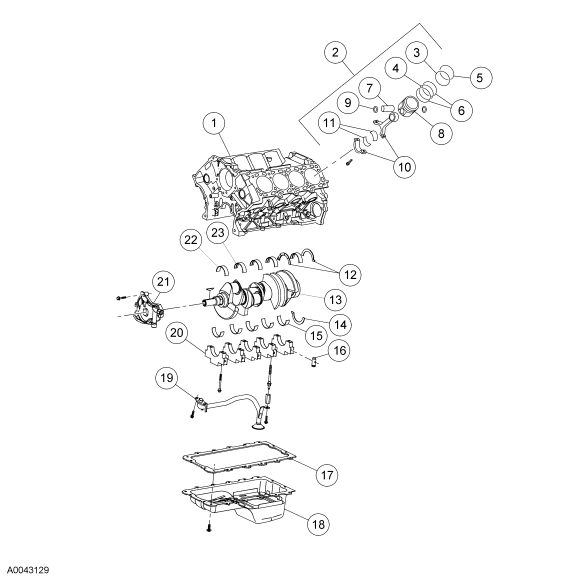

This document is an exploded parts illustration (Ford figure ID A0043129) of a V8 engine lower end / short block assembly. The drawing shows the cylinder block (callout 1) with numbered callouts 1 through 23 pointing to components including a piston, piston rings, wrist pin, connecting rod, rod bearings and rod cap (callouts 2–11 grouped in the upper right), the crankshaft with upper and lower main bearing shells (callouts 12–14), thrust bearing components (15–16), the main bearing cap/bedplate assembly (20), the front-mounted oil pump (21), crankshaft-area components (22–23), the oil pump pickup tube and screen (19), the oil pan gasket (17), and the stamped oil pan with drain plug (18). No parts legend, part numbers, torque specifications, or descriptive text appears on this page — only the callout numbers and the illustration ID. Based on the album, companion pages (5.4 ENGINE-2 through -5) likely contain the matching legend. A reader can use this page to see the assembly order and relative positioning of the engine's rotating assembly, bearings, oil pump, pickup tube, and oil pan, but must consult the accompanying legend page to identify each numbered part by name or part number.
