What vehicle and seat type does this exploded diagram cover?

It covers the 2001 Ford F-150 front seat — captain chairs with power track and seat integrated restraints.

What are the part numbers for the seat back cover and pad?

The seat back cover is 64417 and the pad is 64811. The cushion cover is 62901 with pad 632A23, and the head restraint cover is 613D82 with pad 611A08.

What is the part number of the power seat track assembly?

The power track assembly is labeled 61711 in the diagram.

What do the triangle (▲) symbols next to some part numbers mean?

The note states: 'REFER TO GROUP IN SOFT TRIM SECTION' for parts marked with the triangle symbol.

What is the drawing number and date of this illustration?

The drawing is P-38807, dated 11/28/2001.

Home/ Registry/ Ford/ Mustang/ 2005-2014/ “SHELBY GT500”/ Photo supermotors.net/registry/media/655658

2001 Ford F-150 Front Seat Captain Chairs Power Track Exploded Parts Diagram

Exploded parts catalog page for 2001 F-150 front captain chairs power track with part numbers

‹ ›

Parts catalog exploded view of the 2001 F-150 front captain chairs power track with integrated restraints, labeled with part numbers.

AI caption July 2008 · Photo 73 of 4867

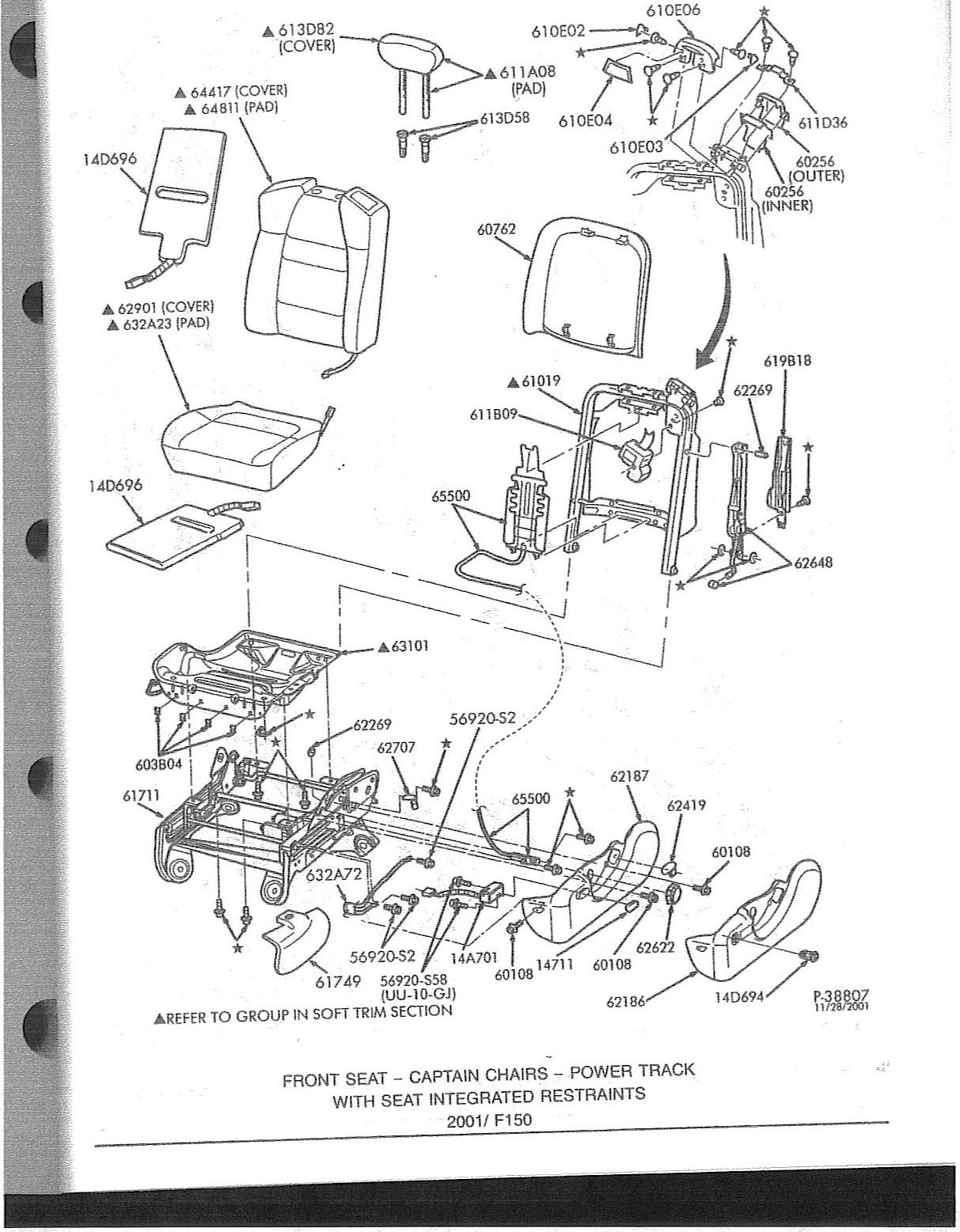

This document is a factory exploded-parts illustration (drawing number P-38807, dated 11/28/2001) for the 2001 Ford F-150 front seat, specifically the captain chairs with power track and seat-integrated restraints. It shows the complete seat assembly disassembled into its component parts, each labeled with a Ford base part number. Components identified include the head restraint cover (613D82) and pad (611A08), seat back cover (64417) and pad (64811), seat cushion cover (62901) and pad (632A23), heated seat elements (14D696), seat back frame (61019), seat back panel (60762), power seat track assembly (61711), cushion pan (63101), recliner mechanisms and belt-related hardware (611D36, 60256 inner/outer, 619B18, 62648), wiring (14A701, 65500), side shields/trim (62186, 62187, 61749, 62622, 14D694), and assorted fasteners including 56920-S2 and 56920-S58 (UU-10-GJ) screws, 60108 bolts, 62269, 62707, 62419, 603B04, and 632A72. Items marked with a triangle (▲) direct the reader to the soft trim section of the parts catalog. The diagram is useful for identifying part numbers when ordering replacement seat components or understanding how the power captain chair seat assembles.
