Ford Steering Column Exploded Parts Diagram - Assembly View GG0538-B

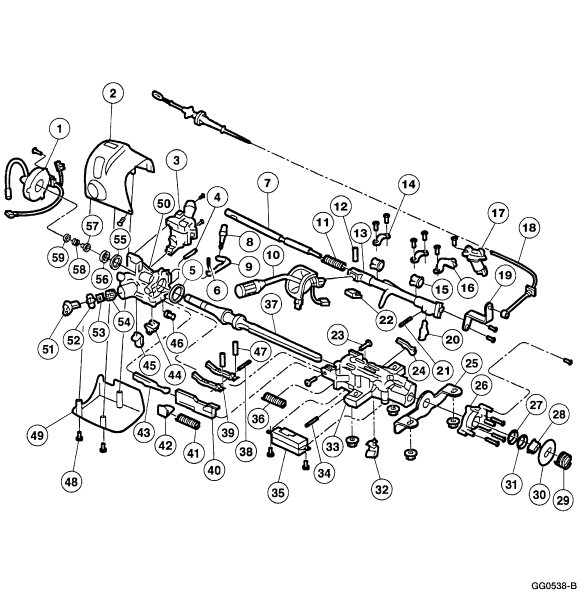

This document is an exploded-view parts illustration of a complete steering column assembly, identified by the figure reference number GG0538-B in the lower right corner. The drawing shows the steering column disassembled into its individual components, with 59 numbered callout balloons identifying each part. Visible components include the upper and lower column shrouds/covers, multifunction (turn signal/wiper) switch and wiring harness, ignition lock cylinder and actuator components, steering shaft and intermediate shaft, tilt mechanism parts, springs, bearings, snap rings, bolts, screws, brackets, the column housing/casting, shift lever components, and various small fasteners and clips. The diagram itself contains no parts legend or table, so part names, part numbers, and torque specifications are not included in this scan — a reader would need the accompanying legend page (likely part of the same multi-page set) to identify what each numbered callout represents. The illustration is useful as a visual assembly/disassembly reference showing the relative position and orientation of every component in the steering column, which can guide a mechanic during column teardown, ignition lock replacement, tilt mechanism repair, or full column rebuild. The uploader's filename indicates this covers a 1997 steering column, though no year or model is stated on the drawing itself.
