Ford E4OD Transmission Cutaway Diagram - Planetary Gearsets & Component Locations

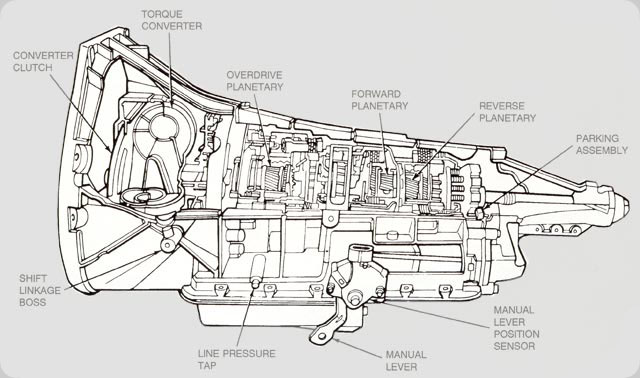

This document is a labeled cutaway (cross-section) illustration of a Ford automatic transmission, filed by the uploader under the name 'E4ODbig.jpg', indicating it depicts the Ford E4OD four-speed automatic overdrive transmission. The side-view schematic shows the internal layout of the transmission from the bell housing at the front to the output/tailshaft area at the rear. Ten components are identified with leader-line callouts: the converter clutch and torque converter inside the bell housing; the overdrive planetary, forward planetary, and reverse planetary gearsets arranged along the mainshaft; the parking assembly near the rear of the case; the shift linkage boss on the lower front of the case; the line pressure tap on the case near the pan rail; and the manual lever with its associated manual lever position sensor mounted on the side of the case. The drawing gives a reader a quick visual reference for where each major internal assembly and external service point (such as the line pressure tap and manual lever position sensor) is located on the transmission. No part numbers, torque specifications, fluid capacities, model years, or textual notes appear on the illustration—only the component callout labels.
