Ford Fuel Injector Diagram - EFHD SMM & Bosch EV6 Metering Assembly Cutaway

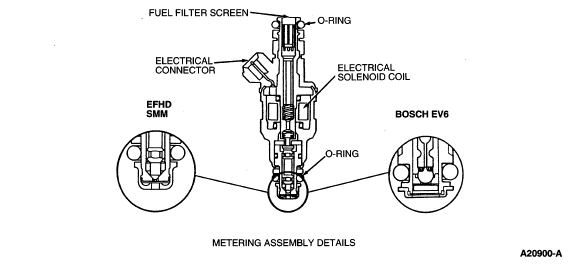

This document is a Ford service-manual style schematic illustrating the internal construction of a fuel injector. The main cutaway drawing shows a single fuel injector in cross-section with callouts identifying its key components: the fuel filter screen at the inlet, an upper O-ring, the electrical connector on the side of the body, the electrical solenoid coil inside the injector, and a lower O-ring at the metering (tip) end. Two circular detail insets at the bottom of the drawing, labeled 'METERING ASSEMBLY DETAILS,' compare the metering assembly designs of two injector types: the EFHD SMM injector (left inset) and the Bosch EV6 injector (right inset). The illustration reference number A20900-A appears at the lower right. The diagram is useful for understanding where the sealing O-rings are located (top and bottom of the injector), where the inlet filter screen sits, and how the solenoid coil and electrical connector are arranged, as well as recognizing the physical differences between the EFHD SMM and Bosch EV6 metering tip designs. No year, model, engine, torque values, or part numbers (other than the figure number) are shown on the document itself.
