Which Dana front axle is used on the Ford Bronco and F150 4x4?

According to the document, the Dana 44-IFS (Independent Front Suspension) axle is available on the Bronco and F150 4x4s.

What Dana front axles were used on Ford 4x4 trucks?

Four types: the Dana 44-IFS (Bronco/F150), the Dana 44-IFS-HD heavy duty (F250), the Dana 50-IFS (F250 and F350, later an option on F250 only), and the Dana 60 Monobeam solid axle.

What does illustration 23.2 show?

It is an exploded view of a late-model Dana 50-IFS front axle assembly with automatic hubs, labeling all components including axle arm assemblies, universal joint kits, differential gears, bearings, steering knuckle, spindle, rotor, hub and locknuts.

How is the Dana 60 Monobeam axle different from the IFS axles?

The document states the model 60 Monobeam is a solid axle design mechanically identical to the model 60 rear axle, while the IFS axles are independent front suspension designs that are basically alike.

How can I tell which front axle is on my truck?

The document says to consult the rating tag located in the engine compartment or the owner's manual if there is a question about which axle is on your vehicle.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/685240

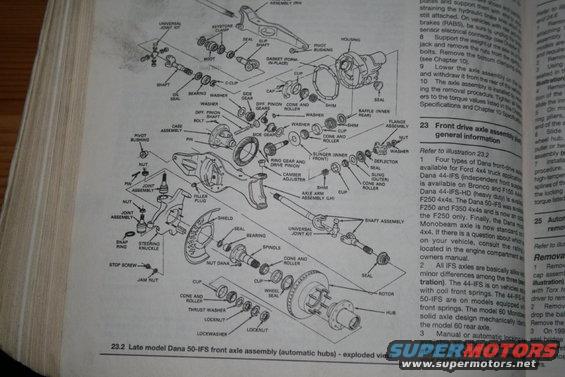

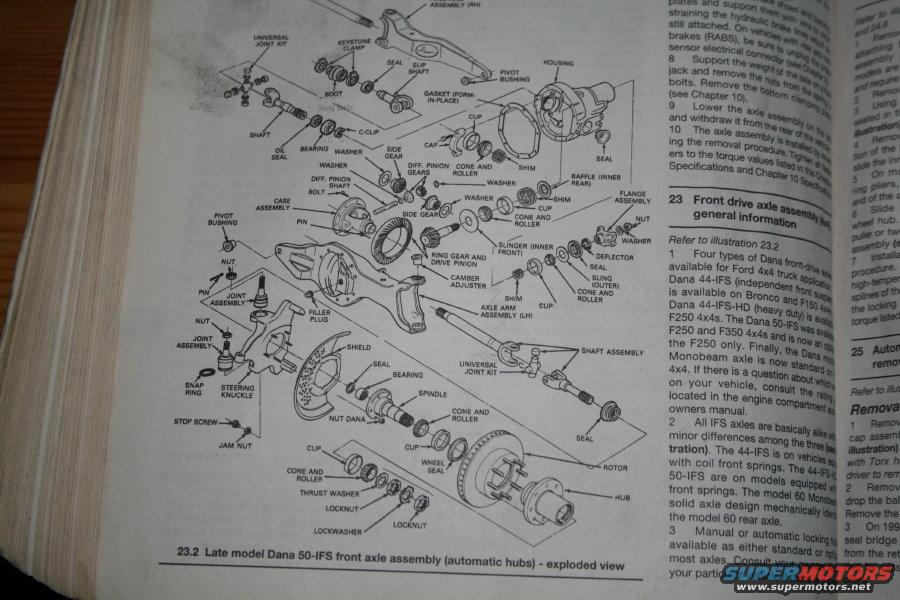

Ford Bronco/F150/F250 Dana 50-IFS Front Axle Exploded Diagram - Haynes 23.2

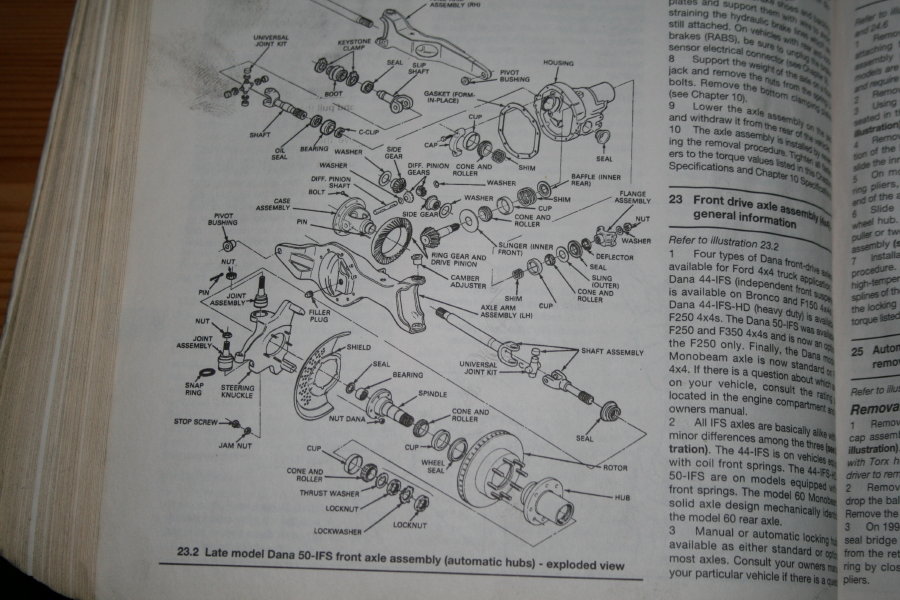

Exploded view of Dana 50-IFS front drive axle assembly with labeled parts

‹ ›

Service manual exploded view of a late-model Dana 50-IFS front drive axle assembly with labeled components.

AI caption November 2008 · Photo 17 of 19

This is a page from a Haynes-style repair manual covering Ford 4x4 trucks and Broncos. The main feature is illustration 23.2, a detailed exploded-view diagram of a late-model Dana 50-IFS front axle assembly with automatic hubs, with callouts identifying every component: right and left axle arm assemblies, universal joint kits, keystone clamp, slip shaft, boot, housing, form-in-place gasket, differential internals (side gears, diff pinion gears and shaft, ring gear and drive pinion, case assembly, bearings, cones and rollers, cups, shims), pivot bushings, camber adjuster, steering knuckle, joint assemblies, spindle, wheel seal, rotor, hub, thrust washer, locknuts and lockwasher, among others. The accompanying text (Section 23, 'Front drive axle assembly — general information') explains that four types of Dana front-drive axles are used on Ford 4x4 trucks: the Dana 44-IFS (Bronco and F150), Dana 44-IFS-HD (F250), Dana 50-IFS (F250/F350), and the Dana 60 Monobeam solid axle. It notes that the 44-IFS is used with coil front springs, IFS axles are basically alike, and manual or automatic locking hubs are available on most axles. Partial text also covers axle removal steps (Section 22 continuation) and the beginning of automatic locking hub removal (Section 25). The right edge of the page is cut off in the scan.
