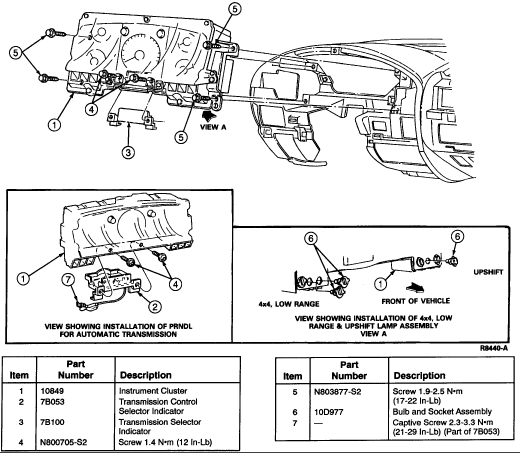

Service manual diagram of instrument cluster installation with P…

1Remove four screws retaining instrument cluster to instrument panel.
2.Carefully pull/rotate bottom of instrument cluster toward steering wheel.
3.On vehicles with automatic transmission, remove two screws from cable to transmission control selector indicator at bottom of instrument cluster.
4.Disconnect three wiring connectors from the back of instrument cluster.
5.Remove instrument cluster.
