What connector is shown in this diagram?

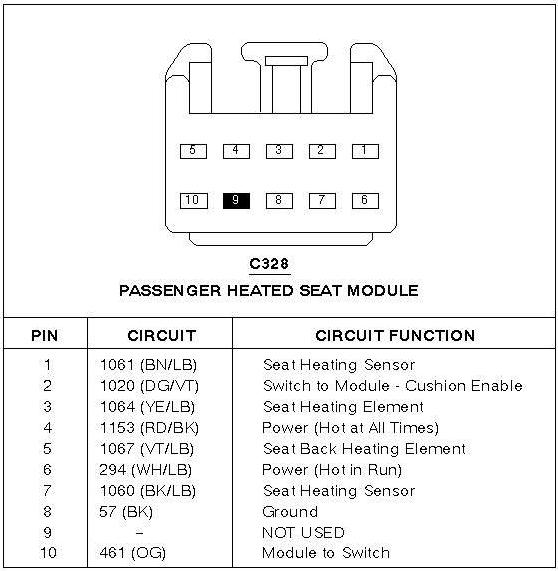

Connector C328, the Passenger Heated Seat Module connector, a 10-pin connector with pins 1-5 in the top row and 6-10 in the bottom row.

Which pin provides constant power to the passenger heated seat module?

Pin 4, circuit 1153 with a red/black (RD/BK) wire, is Power (Hot at All Times). Pin 6, circuit 294 (WH/LB), is Power (Hot in Run).

What is the ground wire for the passenger heated seat module?

Pin 8, circuit 57, a black (BK) wire, is Ground.

Which wires connect to the seat heating sensor?

Pin 1, circuit 1061 (BN/LB), and pin 7, circuit 1060 (BK/LB), are both listed as Seat Heating Sensor.

Which pins go to the heating elements?

Pin 3, circuit 1064 (YE/LB), is the Seat Heating Element, and pin 5, circuit 1067 (VT/LB), is the Seat Back Heating Element.
