What bearing O.D. is specified for part number SH1323?

SH1323 is listed as Std. undersize with a bearing O.D. of 2.1740/2.1750 inches.

What minimum vertical oil clearance is recommended for performance applications?

A minimum of .003" vertical oil clearance should be checked/insured on each journal.

What part numbers are included in this instruction sheet?

SH1321S, SH1321, SH1322, SH1323, SH1324, and SH1325, all listed as standard (Std.).

When was this instruction sheet last revised?

The sheet is marked IS706-B, Revised 9/30/1999, Printed in U.S.A.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “boss”/ Photo supermotors.net/registry/media/747644

Engine Cam Bearing Set SH1321S Instructions - Bearing O.D. Specs (IS706-B)

Important Instructions card listing camshaft bearing part numbers and bearing O.D. specs with rebuilder notes

‹ ›

Engine bearing instruction sheet listing part numbers, undersize, and bearing outer-diameter specifications with notes for performance rebuilders.

AI caption July 2009 · Photo 2743 of 3183

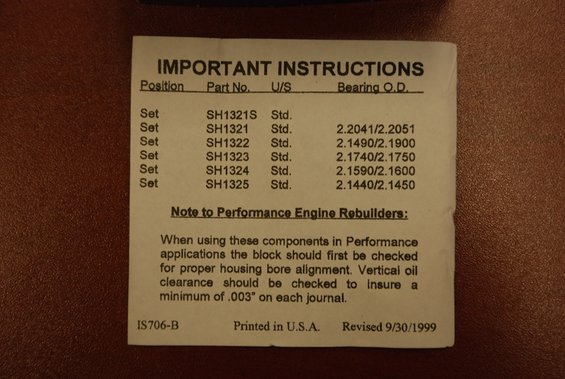

This document is an instruction slip labeled "IMPORTANT INSTRUCTIONS" packaged with an engine bearing set. It lists a table of bearing part numbers by position: SH1321S (set, standard, no O.D. listed), and individual standard-undersize sets SH1321 through SH1325, each with specified bearing outside diameter (O.D.) ranges — SH1321: 2.2041/2.2051, SH1322: 2.1490/2.1900, SH1323: 2.1740/2.1750, SH1324: 2.1590/2.1600, SH1325: 2.1440/2.1450 (all in inches). A "Note to Performance Engine Rebuilders" advises that when using these components in performance applications, the engine block should first be checked for proper housing bore alignment, and vertical oil clearance should be verified to ensure a minimum of .003 inch on each journal. The sheet footer shows document number IS706-B, "Printed in U.S.A.," and a revision date of 9/30/1999. The slip does not identify a specific vehicle make, model, engine, or year of application. Readers can learn the bearing O.D. specifications for each numbered bearing in the set and the minimum recommended vertical oil clearance for performance builds.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What bearing O.D. is specified for part number SH1323?: SH1323 is listed as Std. undersize with a bearing O.D. of 2.1740/2.1750 inches.
What minimum vertical oil clearance is recommended for performance applications?: A minimum of .003" vertical oil clearance should be checked/insured on each journal.
What should be checked before installing these bearings in a performance engine?: The block should first be checked for proper housing bore alignment, and vertical oil clearance should be verified to a minimum of .003" per journal.
What part numbers are included in this instruction sheet?: SH1321S, SH1321, SH1322, SH1323, SH1324, and SH1325, all listed as standard (Std.).
When was this instruction sheet last revised?: The sheet is marked IS706-B, Revised 9/30/1999, Printed in U.S.A.
