Ford Wheels Exploded Parts Diagram - Steel & Alloy Wheels, Covers, Nuts (F0239980-01)

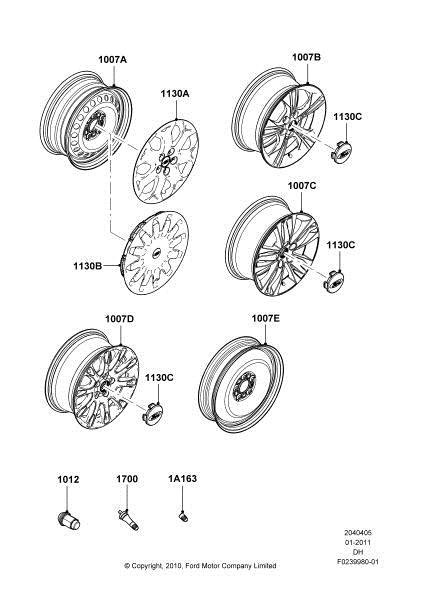

This document is a Ford factory exploded-parts render illustration showing wheels and related components. It depicts six wheel variants identified by callout numbers: 1007A (a steel wheel used with two wheel-cover styles, 1130A and 1130B), 1007B, 1007C and 1007D (three different alloy wheel designs, each shown with a center cap labeled 1130C), and 1007E (a plain steel spare-type wheel). Below the wheels, three small hardware items are shown: 1012 (wheel nut), 1700 (valve stem), and 1A163 (balance weight). The title block in the lower right corner carries the reference numbers 2040405, drawing date 01-2011, sheet code DH, illustration number F0239980-01, and a 2010 Ford Motor Company Limited copyright notice. The document contains no explicit vehicle model or year applicability text, no part numbers beyond the Ford base callout numbers, and no torque or fitting specifications. A reader can use this page to identify Ford base part-number callouts for wheels, wheel covers, center caps, wheel nuts, valve stems and balance weights when cross-referencing a Ford parts catalog, and to visually distinguish the various wheel and cover styles offered.
