What torque do the grille screws (56904-S43B) require?

The screws 56904-S43B are tightened to 1-2 N·m (9-17 IN-LB).

What is the torque spec for the N606689-S36M screw and washer assemblies?

They are tightened to 22-34 N·m (16-25 FT-LB).

What are the part numbers for the left and right grille supports?

The support is 8A186 (RH) and 8A020 (LH).

What part numbers are given for the mouldings and deflector?

Moulding 8419, moulding 8422, and deflector 17778.

What year range does this grille diagram cover?

The diagram is labeled '80-86, covering 1980 through 1986.

Home/ Registry/ Ford/ Bronco/ 1980-1986/ 1982 Ford Bronco/ Photo supermotors.net/registry/media/818131

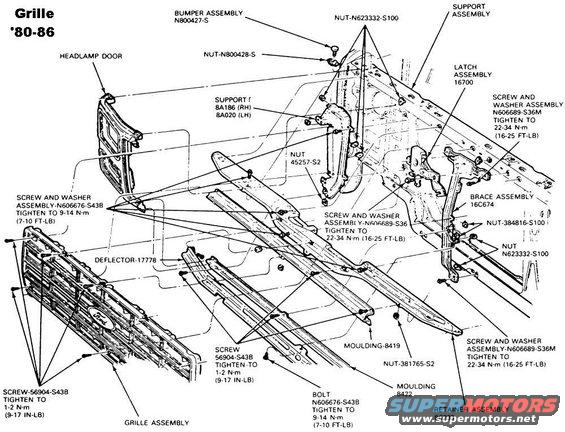

1980-86 Ford Bronco/Truck Grille Exploded Diagram - Part Numbers & Torque Specs

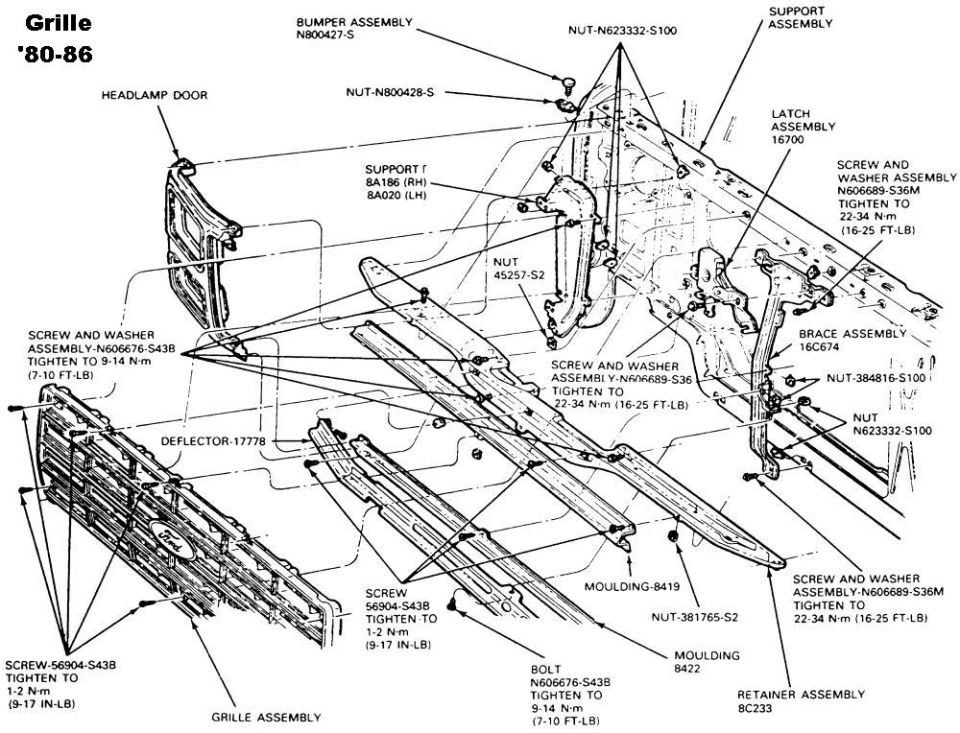

Exploded view of 1980-86 grille assembly with part numbers and torque values

‹ ›

Exploded parts drawing of a 1980-86 grille and headlamp door assembly with part numbers and fastener torque specs.

AI caption August 2010 · Photo 4 of 6

This document is an exploded parts diagram of the front grille assembly for 1980-1986 Ford trucks/Broncos, labeled "Grille '80-86." It shows the grille assembly, headlamp door, deflector (17778), mouldings (8419 and 8422), retainer assembly (8C233), latch assembly (16700), brace assembly (16C674), support brackets (8A186 RH, 8A020 LH), bumper assembly (N800427-S), and support assembly, along with their fasteners. Fastener callouts include screw and washer assemblies N606676-S43B (tighten to 9-14 N·m / 7-10 FT-LB), N606689-S36 and N606689-S36M (tighten to 22-34 N·m / 16-25 FT-LB), screws 56904-S43B (tighten to 1-2 N·m / 9-17 IN-LB), bolt N606676-S43B (9-14 N·m / 7-10 FT-LB), and nuts N623332-S100, N800428-S, 45257-S2, 384816-S100, and 381765-S2. A reader can learn the part numbers, mounting locations, and torque specifications needed to remove, replace, or reassemble the grille, headlamp doors, mouldings, and related front-end sheet metal hardware on 1980-1986 vehicles.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What torque do the grille screws (56904-S43B) require?: The screws 56904-S43B are tightened to 1-2 N·m (9-17 IN-LB).
What is the torque spec for the N606689-S36M screw and washer assemblies?: They are tightened to 22-34 N·m (16-25 FT-LB).
What are the part numbers for the left and right grille supports?: The support is 8A186 (RH) and 8A020 (LH).
What part numbers are given for the mouldings and deflector?: Moulding 8419, moulding 8422, and deflector 17778.
What year range does this grille diagram cover?: The diagram is labeled '80-86, covering 1980 through 1986.
