1995 Ford Bronco ignition distributor and ICM connector pinout c…

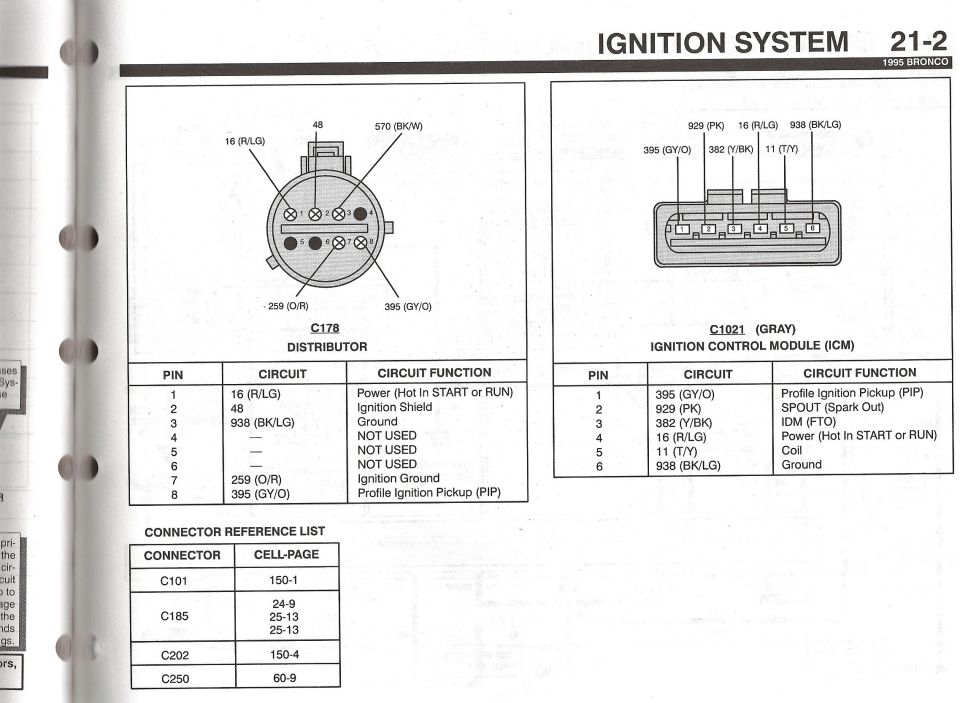

1995 Ford Bronco ignition distributor and ICM connector pinout chart

Page 21-2

Owner caption · Photo 253 of 1799

Is this accurate? Sign in to help verify it.
