What solenoids are in the E4OD transmission on this diagram?

Coast clutch solenoid, #2 shift solenoid, torque converter clutch (TCC) solenoid, #1 shift solenoid, and the electronic pressure control (EPC) solenoid, plus a transmission oil temperature sensor.

What powers the E4OD solenoids?

The PCM power relay, fed by a 20A fuse (hot at all times) in the engine compartment fuse box via circuit 37 Y, directs voltage on circuit 361 R (12V relay energized) to the shift, EPC, and TCC solenoids.

What does the transmission oil temperature sensor do?

The PCM monitors the voltage drop across a temperature sensitive thermistor to determine transmission fluid temperature for adjusting shift schedules, torque converter engagement schedules when the fluid is cold, and EPC pressure for temperature.

What wire colors connect the transmission to the PCM?

923 O/BK (oil temperature sensor), 924 BR/O (coast clutch solenoid), 315 P/O (#2 shift solenoid), 480 P/Y (TCC solenoid), 237 O/Y (#1 shift solenoid), and 925 W/Y (EPC solenoid).

What do the shift solenoids do?

The shift solenoids provide gear selection of first through fourth gear by controlling the pressure to the shift valves.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/851790

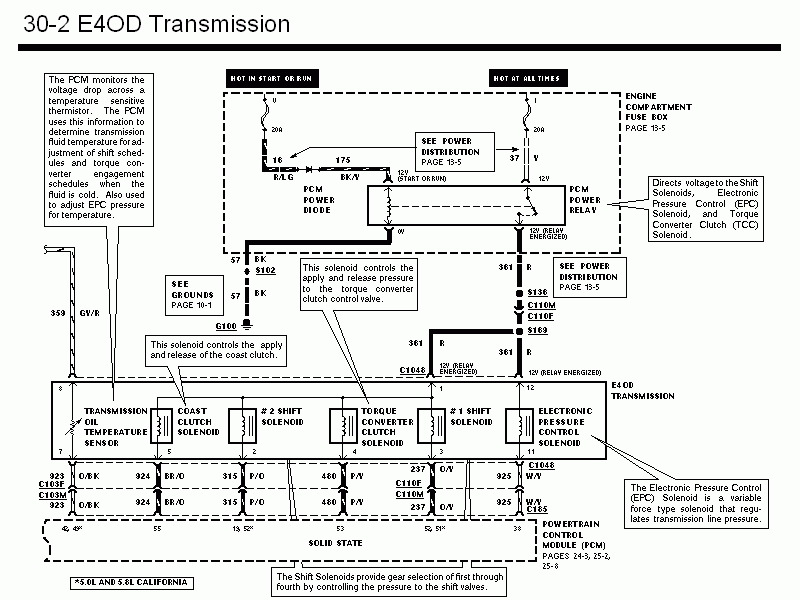

1995 Ford Bronco E4OD Transmission Wiring Diagram - PCM & Solenoids (Pg 30-2)

E4OD transmission wiring diagram page 30-2 with shift solenoids, EPC and TCC solenoid circuits

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - ECT IAT TP EVP Sensors

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM, Injectors, IAC (25-2)

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM & Fuel Pump Relay 25-1

1995 Ford Bronco E4OD Transmission Wiring Diagram - PCM & Solenoids (Pg 30-2)

1995 Ford Bronco E4OD Transmission Wiring Diagram (EVTM Page 30-1)

1989 Ford Bronco Start/Ignition Wiring Diagram 5.0L 5.8L 7.5L - TFI & Coil

1989 Ford Bronco & F-Series Electric Fuel Pump Wiring Diagram (Single Tank) Pg 92

1989 Ford Bronco EEC Wiring Diagram Pg 43 - EFI 5.0L 5.8L 7.5L Test Connectors

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

Wiring diagram of E4OD transmission shift solenoids, torque converter clutch, electronic pressure control, and oil temp sensor.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption February 2011 · Photo 459 of 1787

This is page 30-2 of a Ford factory-style wiring diagram covering the E4OD automatic transmission electrical circuit, uploaded as part of a 1995 Bronco wiring diagram set. It shows power distribution from the engine compartment fuse box (two 20A fuses, one hot in start or run, one hot at all times) through the PCM power diode and PCM power relay to the transmission solenoids. Circuit numbers and wire colors are shown, including 16 R/LG, 175 BK/Y, 37 Y, 57 BK (ground via S102 to G100), 361 R (12V relay energized), 359 GY/R, 923 O/BK, 924 BR/O, 315 P/O, 480 P/Y, 237 O/Y, and 925 W/Y. Inside the E4OD transmission are the transmission oil temperature sensor, coast clutch solenoid, #2 shift solenoid, torque converter clutch solenoid, #1 shift solenoid, and electronic pressure control (EPC) solenoid, all controlled by the Powertrain Control Module (PCM) at pins 49, 55, 19, 52, 53, 12, 51, and 38 (asterisked pins for 5.0L and 5.8L California). Callouts explain the functions of the temperature sensor, TCC and coast clutch solenoids, EPC solenoid, and shift solenoids. Connectors shown include C103F/C103M, C110F/C110M, C1048, C185, and splices S102, S136, S169.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What solenoids are in the E4OD transmission on this diagram?: Coast clutch solenoid, #2 shift solenoid, torque converter clutch (TCC) solenoid, #1 shift solenoid, and the electronic pressure control (EPC) solenoid, plus a transmission oil temperature sensor.
What powers the E4OD solenoids?: The PCM power relay, fed by a 20A fuse (hot at all times) in the engine compartment fuse box via circuit 37 Y, directs voltage on circuit 361 R (12V relay energized) to the shift, EPC, and TCC solenoids.
What does the transmission oil temperature sensor do?: The PCM monitors the voltage drop across a temperature sensitive thermistor to determine transmission fluid temperature for adjusting shift schedules, torque converter engagement schedules when the fluid is cold, and EPC pressure for temperature.
What wire colors connect the transmission to the PCM?: 923 O/BK (oil temperature sensor), 924 BR/O (coast clutch solenoid), 315 P/O (#2 shift solenoid), 480 P/Y (TCC solenoid), 237 O/Y (#1 shift solenoid), and 925 W/Y (EPC solenoid).
What do the shift solenoids do?: The shift solenoids provide gear selection of first through fourth gear by controlling the pressure to the shift valves.
