What does this wiring diagram page cover?

Page 25-7 covers Engine Controls for the 5.8L engine with California emissions, showing the PCM power diode, PCM power relay, fuel pump relay, MAF sensor, EVAP canister purge valve, and Data Link Connector wiring.

What wire color and circuit feeds the inertia fuel shutoff?

Circuit 238 DG/Y (dark green/yellow) runs through connectors C202M/C202F to the inertia fuel shutoff, continued on page 25-12.

What connector is the Mass Air Flow (MAF) sensor on?

The MAF sensor uses connector C130, with circuits including 967 LB/R, 359 GY/R, and 361 R, plus grounding via 57 BK.

What does the fuel pump relay do according to this diagram?

The fuel pump relay directs voltage to the fuel pump; it is fed from a 20A fuse in the engine compartment fuse box (Hot at All Times) and outputs 12V when the relay is energized.

Where are the ground details for this circuit found?

The diagram references grounds G100 and G101 and directs the reader to 'See Grounds' on pages 10-1 and 10-2.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/851797

1995 Ford Bronco 5.8L California Engine Controls Wiring Diagram (Pg 25-7)

Engine Controls 5.8L California wiring diagram page 25-7 with PCM power relay and MAF sensor

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

Ford Bronco 5.8L California Engine Controls Wiring Diagram - MIL & O2 Sensor 25-11

1995 Ford Bronco 5.8L California Engine Controls Wiring Diagram - EGR, TP, ECT

1995 Ford Bronco 5.8L California Engine Controls Wiring Diagram - Page 25-8

1995 Ford Bronco 5.8L California Engine Controls Wiring Diagram (Pg 25-7)

1995 Ford Bronco 5.8L Fuel Pump Wiring Diagram - Engine Controls Page 25-6

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - MIL & CPP Switch (Pg 25-5)

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - MAP & O2 Sensor (25-4)

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - ECT IAT TP EVP Sensors

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

Wiring diagram of California 5.8L engine controls showing PCM/fuel pump relays, mass air flow sensor, and EVAP purge circuits.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption February 2011 · Photo 466 of 1787

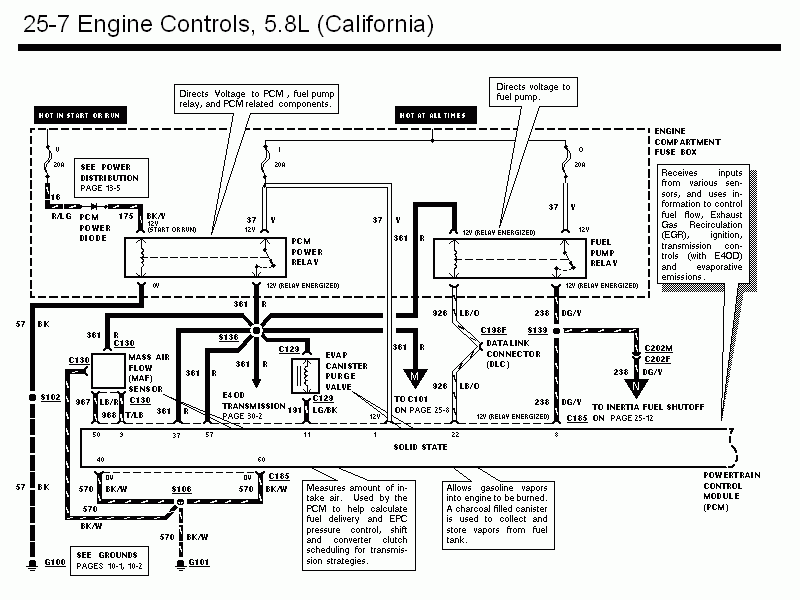

This document is page 25-7 of a Ford factory wiring diagram set, covering Engine Controls for the 5.8L engine (California emissions). It shows the power distribution and control wiring for the Powertrain Control Module (PCM), including the PCM power diode, PCM power relay, and fuel pump relay, all fed from the engine compartment fuse box via 20A fuses (Hot in Start or Run and Hot at All Times circuits). Major components depicted include the Mass Air Flow (MAF) sensor (connector C130), EVAP canister purge valve (connector C129), Data Link Connector (DLC, C198F), and grounds G100/G101. Circuit numbers and wire colors are labeled throughout, such as 361 R, 57 BK, 570 BK/W, 926 LB/O, 238 DG/Y, 967 LB/R, 359 GY/R, 743 T/LB, and 191 LG/BK. Cross-references direct the reader to Power Distribution (page 13-5), E4OD Transmission (page 30-2), the inertia fuel shutoff (page 25-12), C101 (page 25-8), and Grounds (pages 10-1, 10-2). Explanatory callouts describe how the PCM uses sensor inputs to control fuel flow, EGR, ignition, transmission, and evaporative emissions; how the MAF sensor measures intake air; and how the EVAP canister stores fuel tank vapors.
