What wire color and circuit number feed the fuel injectors on the 5.8L Bronco?

The injectors are fed by circuit 361 with a Red (R) wire, coming from splice S136 on page 25-1 and distributed through splices S149 and S151 to injector connectors C190 through C197.

What circuit connects the Idle Air Control (IAC) valve to the PCM?

The IAC valve (connector C1007) connects to PCM pin 21 via circuit 264, a White/Light Blue (W/LB) wire. The other side is 12V with the relay energized.

What does the EVAP canister purge valve do according to this diagram?

When the PCM grounds the solenoid, fuel vapors collected by the carbon canister are released to the engine. It uses connector C171 and circuit 101 GY/V to PCM pin 31.

Which PCM circuits go to the E4OD transmission?

Circuits 925 W/V, 315 P/O, 237 O/Y, 924 BR/O, 923 O/BK, 480 P/Y, 199 LB/V, 911 W/LG, and 224 T/W run from the PCM to the E4OD transmission, shown on pages 30-1 and 30-2.

What are the AIRB and AIRD solenoid circuits?

The Secondary Air Injection Bypass (AIRB) solenoid (C1022) uses circuit 190 W/O to PCM pin 51, and the Secondary Air Injection Diverter (AIRD) solenoid (C1023) uses circuit 200 BR to PCM pin 11.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/851792

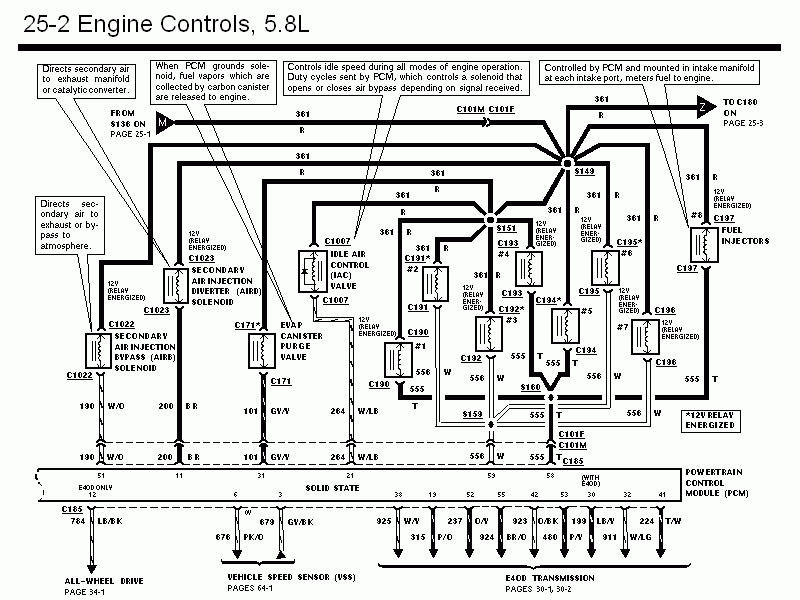

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM, Injectors, IAC (25-2)

Engine Controls 5.8L wiring diagram page 25-2 with fuel injectors, IAC valve and AIR solenoids

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - MIL & CPP Switch (Pg 25-5)

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - MAP & O2 Sensor (25-4)

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - ECT IAT TP EVP Sensors

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM, Injectors, IAC (25-2)

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM & Fuel Pump Relay 25-1

1995 Ford Bronco E4OD Transmission Wiring Diagram - PCM & Solenoids (Pg 30-2)

1995 Ford Bronco E4OD Transmission Wiring Diagram (EVTM Page 30-1)

1989 Ford Bronco Start/Ignition Wiring Diagram 5.0L 5.8L 7.5L - TFI & Coil

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

Wiring diagram of 5.8L engine controls showing fuel injectors, idle air control valve, EVAP purge, and secondary air solenoids.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption February 2011 · Photo 461 of 1787

This document is page 25-2 of a Ford factory wiring diagram set covering Engine Controls for the 5.8L engine, part of a multi-page 1995 Bronco electrical schematic collection. It shows the PCM-controlled output devices: the Secondary Air Injection Bypass (AIRB) solenoid (C1022, circuit 190 W/O), Secondary Air Injection Diverter (AIRD) solenoid (C1023, circuit 200 BR), EVAP canister purge valve (C171, circuit 101 GY/V), Idle Air Control (IAC) valve (C1007, circuit 264 W/LB), and all eight fuel injectors (connectors C190-C197, fed by circuit 361 R from S136 on page 25-1, with return circuits 555/556/559 in T and W wire colors). Callout boxes explain each component's function, e.g., the IAC valve controls idle speed via PCM duty cycle, and the injectors are PCM-controlled and mounted at each intake port. The bottom of the page shows the Powertrain Control Module (solid state) with numbered pins (51, 11, 6, 3, 21, 38, 13, 52, 55, 48, 42, 53, 30, 32, 41) and circuits leading to the All-Wheel Drive system (page 34-1), Vehicle Speed Sensor (page 64-1), and E4OD transmission (pages 30-1, 30-2). Splices S149, S151, S159, S160 and connectors C101M/C101F and C185 are identified. Notes flag circuits that are 12V when the relay is energized.

Applies to: Ford 5.8L PCM engine controls, page 25-2 (F-Series/Bronco, year not printed) (factory). Matches this vehicle.

Reviewed by the SuperMotors Editorial Team · Spotted an error? Suggest a correction

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire color and circuit number feed the fuel injectors on the 5.8L Bronco?: The injectors are fed by circuit 361 with a Red (R) wire, coming from splice S136 on page 25-1 and distributed through splices S149 and S151 to injector connectors C190 through C197.
What circuit connects the Idle Air Control (IAC) valve to the PCM?: The IAC valve (connector C1007) connects to PCM pin 21 via circuit 264, a White/Light Blue (W/LB) wire. The other side is 12V with the relay energized.
What does the EVAP canister purge valve do according to this diagram?: When the PCM grounds the solenoid, fuel vapors collected by the carbon canister are released to the engine. It uses connector C171 and circuit 101 GY/V to PCM pin 31.
Which PCM circuits go to the E4OD transmission?: Circuits 925 W/V, 315 P/O, 237 O/Y, 924 BR/O, 923 O/BK, 480 P/Y, 199 LB/V, 911 W/LG, and 224 T/W run from the PCM to the E4OD transmission, shown on pages 30-1 and 30-2.
What are the AIRB and AIRD solenoid circuits?: The Secondary Air Injection Bypass (AIRB) solenoid (C1022) uses circuit 190 W/O to PCM pin 51, and the Secondary Air Injection Diverter (AIRD) solenoid (C1023) uses circuit 200 BR to PCM pin 11.
