1987-93 Ford 5.0L Spark Plug Wire Routing Diagram & Firing Order 1-5-4-2-6-3-7-8

1987-93 Ford 5.0L Spark Plug Wire Routing Diagram & Firing Order
1987-93 Ford 5.0L Spark Plug Wire Routing Diagram & Firing OrderOriginal file
1987-93 Ford 5.0L Spark Plug Wire Routing Diagram & Firing Order

Reference · 1987-1991 BroncoAll 95 service procedures

Ford Fuel Line Quick-Disconnect & Spring-Lock Coupling Tools Diagram (T90T-9550) Ford Bronco F-150-350 E-150-350 Parking Brake Cable Tension Limiter Adjustment 1994-Up Ford 5.0L Spark Plug Wire Routing Diagram & Firing Order 1-3-7-2-6-5-4-8 1987-93 Ford 5.0L Spark Plug Wire Routing Diagram & Firing Order 1-5-4-2-6-3-7-8 Ford EEC-IV TFI Module Diagnostic Worksheet - Ignition No-Spark Test Steps Ford RFI Suppression Capacitor Install - Ignition Coil 4.9L 5.0L 5.8L 7.5L MFI Ford Idle Air Adjust Spacer Kit - When to Install for Throttle Body Sludge Ford E4OD Cooler Line Check Valve Ballcheck Inspection Diagram (TB-3929-A) 95service procedures1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

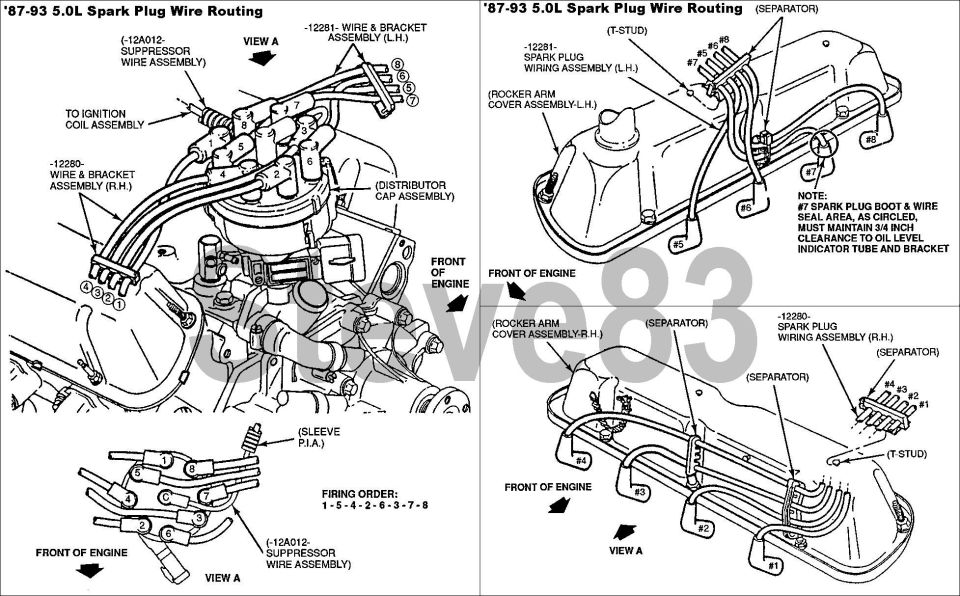

'87-93 Ford 5.0L V8 spark plug wire routing showing distributor cap layout, L.H./R.H. wire & bracket assemblies, firing order 1-5-4-2-6-3-7-8 and #7 wire oil-tube clearance note.

Part of 1987-1991 Ford Bronco Service Procedures

AI caption · Photo 353 of 1787

This document is a factory-style illustration set showing the spark plug wire routing for 1987-1993 Ford 5.0L V8 engines. The left panel shows an overall engine view identifying the -12A012- suppressor wire assembly, the connection to the ignition coil assembly, the distributor cap assembly, and the two wire & bracket assemblies: -12281- for the left-hand bank (cylinders 5, 6, 7, 8) and -12280- for the right-hand bank (cylinders 1, 2, 3, 4). A lower-left top view of the distributor cap (View A) shows the cap tower positions (1, 5, 8, 4, 7, 3, 6, 2 around the center coil terminal C) and states the firing order: 1-5-4-2-6-3-7-8. The right panels show detailed routing along each rocker arm cover, with separators and T-studs locating the wires for cylinders #5-#8 on the left-hand cover and #1-#4 on the right-hand cover. A note warns that the #7 spark plug boot and wire seal area must maintain 3/4 inch clearance to the oil level indicator tube and bracket. Readers can use this to correctly route, separate, and connect plug wires and verify firing order.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the firing order for the 1987-1993 Ford 5.0L V8?
The document states the firing order is 1-5-4-2-6-3-7-8.
Which spark plug wire assembly goes on which side of the 5.0L engine?
The -12281- wire & bracket / spark plug wiring assembly serves the left-hand side (cylinders #5, #6, #7, #8) and the -12280- assembly serves the right-hand side (cylinders #1, #2, #3, #4).
Is there any clearance requirement for the #7 spark plug wire?
Yes. The note states the #7 spark plug boot and wire seal area, as circled, must maintain 3/4 inch clearance to the oil level indicator tube and bracket.
How are the spark plug wires secured along the valve covers?
The wires are routed through separators and retained by T-studs on the rocker arm cover assemblies on both the left-hand and right-hand sides.
How are the wires arranged on the distributor cap of the 87-93 5.0L?
View A shows the cap top view with towers labeled 1, 5, 8, 4, 7, 3, 6, 2 arranged around the center coil terminal (C), with the front of engine direction indicated for orientation.
