1990 Ford Bronco 5.0L/5.8L Engine Component Location View - Diagram 151-3
Reference · 1987-1991 BroncoAll 111 schematics
Ford EVTM component location view 151-3 for 5.0L/5.8L engines; maps fuel injectors, TAB solenoid, EEC module, coolant temp sender, EGR position sensor, TPS, idle air bypass and connectors.
Part of 1987-1991 Ford Bronco Schematics

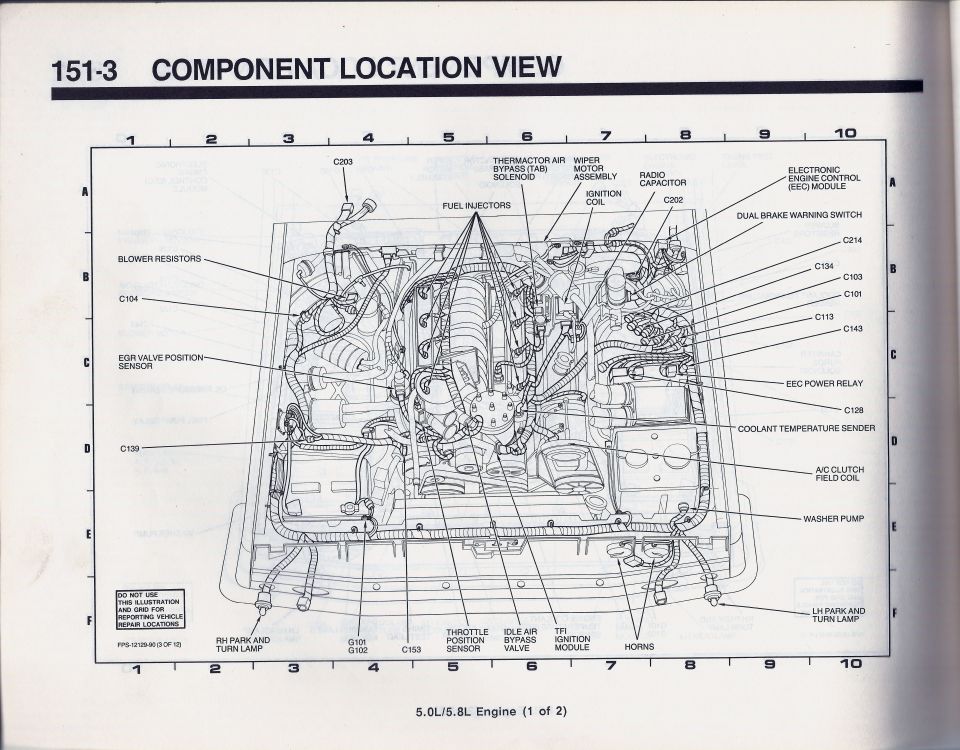

This document is page 151-3, "Component Location View," from a Ford electrical/vacuum troubleshooting manual, showing an overhead line-art illustration of the engine compartment for the 5.0L/5.8L engine (sheet 1 of 2). A letter/number grid (columns 1-10, rows A-F) frames the drawing to help locate components. Callout arrows identify the physical locations of engine-bay electrical components and connectors, including the Electronic Engine Control (EEC) module, EEC power relay, TFI ignition module, ignition coil, fuel injectors, throttle position sensor, idle air bypass valve, EGR valve position sensor, thermactor air bypass (TAB) solenoid, coolant temperature sender, dual brake warning switch, radio capacitor, wiper motor assembly, blower resistors, washer pump, A/C clutch field coil, horns, and the LH/RH park and turn lamps. Numbered connectors identified include C101, C103, C104, C113, C128, C134, C139, C143, C153, C202, C203, and C214, plus grounds G101 and G102. A boxed note warns not to use the illustration and grid for reporting vehicle repair locations. The figure reference "FPS-12129-90 (3 OF 12)" indicates a 1990-model-year publication, consistent with the uploader's 1990 Ford Bronco.
