1990 Ford Bronco Component Location View 151-9 - Full Body Wiring Diagram

Full body component location view of Bronco showing labeled lamps, motors, switches, and connectors (page 151-9)
Full body component location view of Bronco showing labeled lamps, motors, switches, and connectors (page 151-9)Original file
Full body component location view of Bronco showing labeled lamps, motors, switches, and connectors (page 151-9)

Reference · 1987-1991 BroncoAll 111 schematics

1990 Ford Bronco Component Location View 151-12-165 Amp Alternator Layout 1990 Ford Bronco Frame Rail Component Location View 151-11 - Connectors & Sensors 1990 Ford F-Series/Bronco Component Location View 151-10 - Full Body Connectors 1990 Ford Bronco Component Location View 151-9 - Full Body Wiring Diagram 1990 Ford Bronco Component Location View 151-8 - Behind Dash Connectors 1990 Ford 7.5L Engine Component Location View 151-7 - Connectors & Relays 1990 Ford 7.5L Engine Component Location View 151-6 - Underhood Connectors 1990 Ford 7.3L Diesel Engine Component Location View Diagram (Page 151-5) Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs Stock Integral Gear Power Steering Fluid Flow Diagram - Ford Bronco Gear Box Schematic 111schematics1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Component location view (full body, Bronco) identifying door motors, lamps, window controls, and connector callouts throughout the body.

Part of 1987-1991 Ford Bronco Schematics

AI caption · Photo 656 of 1787

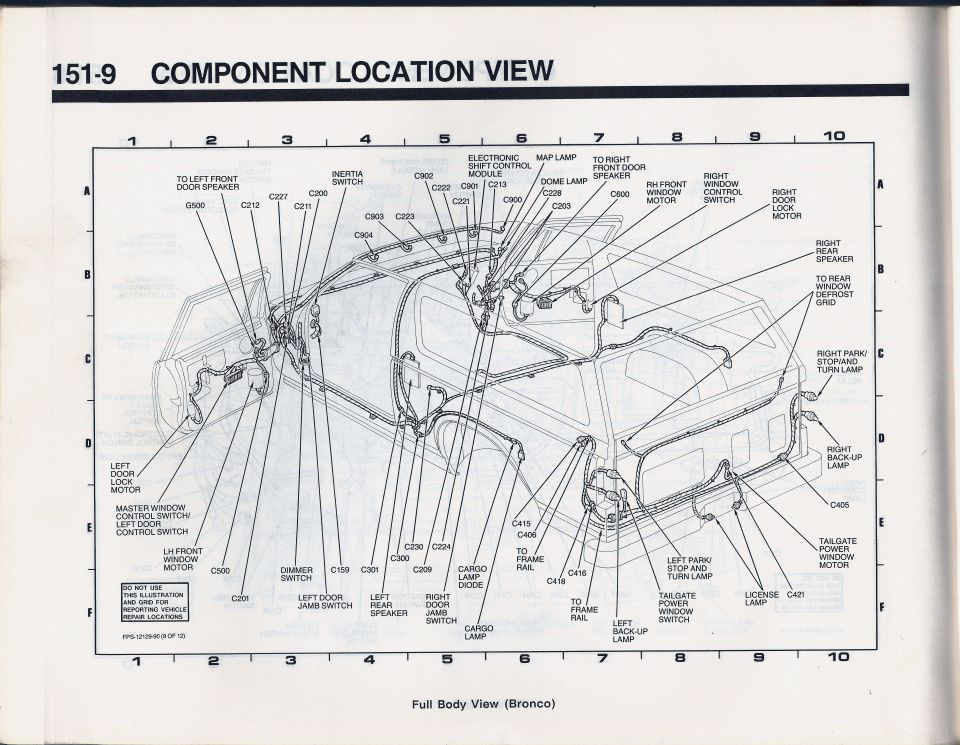

This document is page 151-9, "Component Location View," from a Ford electrical/vacuum troubleshooting manual, showing a Full Body View of the Bronco. It is a line-art illustration of the Bronco body (doors, roof, cargo area, and tailgate) overlaid with wiring harness routing and labeled callouts identifying electrical components and connector numbers. Components identified include the inertia switch, electronic shift control module, dome lamp, map lamp, cargo lamp and cargo lamp diode, door lock motors (left and right), front window motors, master window control switch, right window control switch, dimmer switch, door jamb switches, front door and rear speakers, park/stop/turn lamps, back-up lamps, license lamp, tailgate power window switch and motor, and the rear window defrost grid feed. Connector callouts include C159, C200, C201, C203, C209, C211, C212, C213, C221-C224, C227, C228, C230, C300, C301, C405, C406, C415, C416, C418, C421, C500, C600, C900-C904, and ground G500. A grid (columns 1-10, rows A-F) frames the drawing for locating items. The drawing is stamped FPS-12129-90 (9 of 12) and includes a note not to use the illustration/grid for reporting vehicle repair locations.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does page 151-9 of the 1990 Ford Bronco manual show?
It shows a Component Location View, a Full Body View of the Bronco with callouts identifying electrical components (lamps, motors, switches, speakers) and connector numbers, laid over the body wiring harness routing on a grid of columns 1-10 and rows A-F.
Where is the inertia switch shown on the 1990 Bronco?
The inertia switch is called out near the top of the diagram, located behind the dash/left cowl area of the body, around grid columns 3-4.
Which connector numbers appear in this Bronco full body view?
C159, C200, C201, C203, C209, C211, C212, C213, C221, C222, C223, C224, C227, C228, C230, C300, C301, C405, C406, C415, C416, C418, C421, C500, C600, C900, C901, C902, C903, C904, and ground G500.
What tailgate components are identified in this diagram?
The tailgate area shows the tailgate power window motor, tailgate power window switch, license lamp, left and right back-up lamps, left and right park/stop and turn lamps, and connectors C405, C406, C415, C416, C418, and C421.
What drawing number is this diagram?
It is marked FPS-12129-90 (9 OF 12).
