1990 Ford F-Series/Bronco Component Location View 151-10 - Full Body Connectors

Full body component location view of F-Series showing labeled lamps, motors, switches, and connectors (page 151-10)
Full body component location view of F-Series showing labeled lamps, motors, switches, and connectors (page 151-10)Original file
Full body component location view of F-Series showing labeled lamps, motors, switches, and connectors (page 151-10)

Reference · 1987-1991 BroncoAll 111 schematics

Ford 5.0L / 5.8L HO V8 Firing Order Diagram 1-3-7-2-6-5-4-8 & Plug Wire Routing 1990 Ford Bronco Component Location View 151-12-165 Amp Alternator Layout 1990 Ford Bronco Frame Rail Component Location View 151-11 - Connectors & Sensors 1990 Ford F-Series/Bronco Component Location View 151-10 - Full Body Connectors 1990 Ford Bronco Component Location View 151-9 - Full Body Wiring Diagram 1990 Ford Bronco Component Location View 151-8 - Behind Dash Connectors 1990 Ford 7.5L Engine Component Location View 151-7 - Connectors & Relays 1990 Ford 7.5L Engine Component Location View 151-6 - Underhood Connectors Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs Stock Integral Gear Power Steering Fluid Flow Diagram - Ford Bronco Gear Box Schematic 111schematics1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Component location view (full body, F-Series) identifying door motors, cargo and turn lamps, switches, and connector callouts.

Part of 1987-1991 Ford Bronco Schematics

AI caption · Photo 657 of 1787

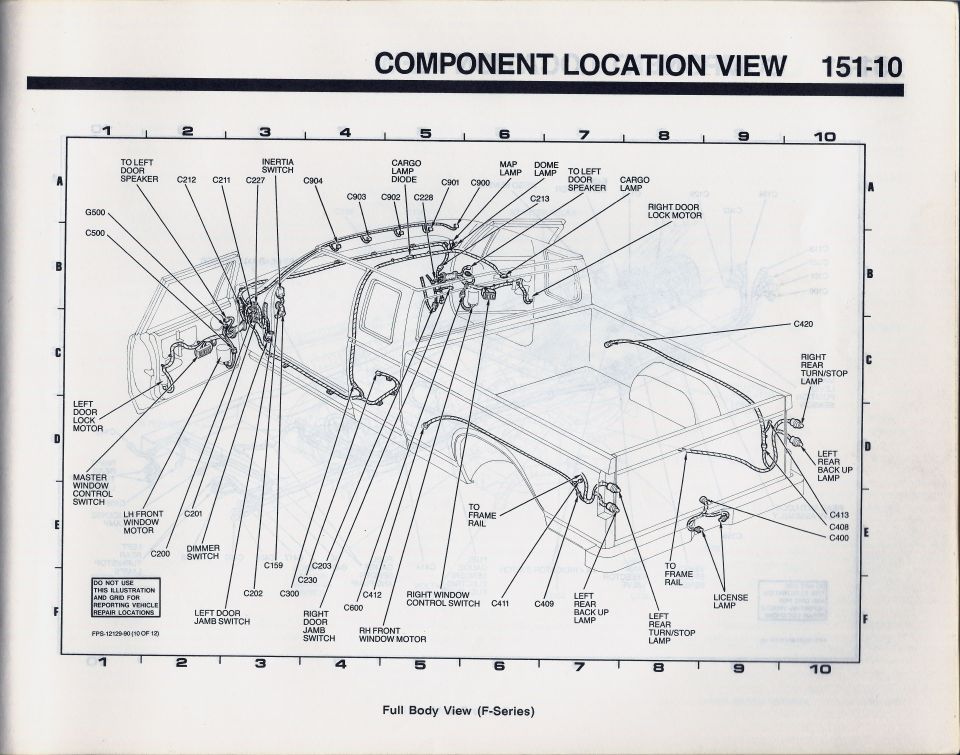

This document is page 151-10 of a Ford component location view section, captioned "Full Body View (F-Series)." It is a grid-referenced (columns 1-10, rows A-F) cutaway line drawing of an F-Series pickup body showing the physical locations of electrical connectors, grounds, switches, motors, and lamps in the cab, doors, roof, and cargo bed. Labeled connectors include C159, C200, C201, C202, C203, C211, C212, C213, C227, C228, C230, C300, C400, C408, C409, C411, C412, C413, C420, C500, C600, and roof-harness connectors C900-C904, plus ground G500. Labeled components include the inertia switch, dimmer switch, master and right window control switches, LH/RH front window motors, left and right door lock motors, left and right door jamb switches, dome lamp, map lamp, cargo lamp and cargo lamp diode, left/right rear turn/stop lamps, left/right rear back-up lamps, license lamp, and left/right door speaker leads, with harness routings "to frame rail." A boxed note warns not to use the illustration and grid for reporting vehicle repair locations. The sheet is identified as FPS-12129-90 (10 of 12), indicating a 1990 publication.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does page 151-10 of the 1990 Ford EVTM show?
It is a Full Body View (F-Series) component location diagram showing the locations of body electrical connectors, grounds, switches, motors, and lamps on a grid (columns 1-10, rows A-F).
Which connectors are identified on this diagram?
C159, C200, C201, C202, C203, C211, C212, C213, C227, C228, C230, C300, C400, C408, C409, C411, C412, C413, C420, C500, C600, and roof connectors C900, C901, C902, C903, C904, plus ground G500.
Where is the inertia switch shown?
The inertia switch is called out near the top of the diagram in the cab area, around grid column 3, adjacent to connectors C227 and C904.
What rear lighting components are located on this view?
Left and right rear turn/stop lamps, left and right rear back-up lamps, the license lamp, and the cargo lamp with its cargo lamp diode.
Can this grid be used to report vehicle repair locations?
No. A boxed note states: "DO NOT USE THIS ILLUSTRATION AND GRID FOR REPORTING VEHICLE REPAIR LOCATIONS."
