Which wires go to the E4OD shift solenoids?

Pin 2, circuit 315 (P/O), is the Shift Solenoid #2 Output, and Pin 3, circuit 237 (O/Y), is the Shift Solenoid #1 Output.

What wire is the E4OD transmission fluid temperature sensor on?

Pin 7, circuit 923 (O/BK), is the Transmission Fluid Temperature Sensor; its signal return is Pin 8, circuit 359 (GY/R).

Which pins on connector C1048 are not used?

Pins 6, 9, and 10 are marked NOT USED (shown filled in on the connector drawing).

What circuit controls the torque converter clutch on the E4OD?

Pin 4, circuit 480 (P/Y), is the Torque Converter Clutch Control Solenoid; Pin 5, circuit 924 (BR/O), is the Coast Clutch Solenoid.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Big '92”/ Photo supermotors.net/registry/media/863500

1995 Ford Bronco E4OD Transmission Connector C1048 Pinout & Wire Colors

1995 Bronco E4OD transmission C1048 connector pinout and circuit chart

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford Bronco 16-Pin Connector Pinout Diagram - Wire Color Codes (E4OD-related)

Ford E4OD Transmission Harness Connector Wiring Diagram - Pinout & Sensors

1995 Ford Bronco E4OD Transmission Wiring Diagram - Solenoids & PCM Circuits

1995 Ford Bronco E4OD Transmission Connector C1048 Pinout & Wire Colors

Ford Bronco 5.8L Engine Controls Wiring Diagram - MIL & CPP Switch (Pg 25-5)

Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM, TP, ECT, IAT, EGR Sensors

1995 Ford Bronco 5.8L Engine Controls Wiring Diagram - PCM, Injectors, IAC (25-2)

1995 Ford Bronco E4OD Transmission Wiring Diagram - BOO Switch, TCS, TR Sensor

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Ford BW 1356 Manual Shift Transfer Case Exploded Diagram - Bronco & F-150

Exploded parts

4WD truck alignment sleeve install instructions with knuckle illustration and camber/caster top views

Service procedure

5-Pin SPDT Relay Diagram - Pin 30/85/86/87/87a Wiring & CarPC ACC/IGN Setup

Schematic

Ford Bronco Gasoline Engine Vacuum Hose Routing Diagram - Hose Colors & Ports

Vacuum routing

Ford Bronco Power Distribution Box Diagram - Relay Layout & Fuse Positions

Fuse chart

Spec plate

Manual page

Blueprint

1994-1995 BMW 3 Series Owner's Manual Booklet Set - Warranty, Radio & Accessories

Brochure

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

E4OD transmission connector C1048 (gray) 12-pin pinout for 1995 Bronco: shift solenoids, TCC, coast clutch, fluid temp sensor, EPC with circuit numbers and wire colors.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption April 2011 · Photo 951 of 2193

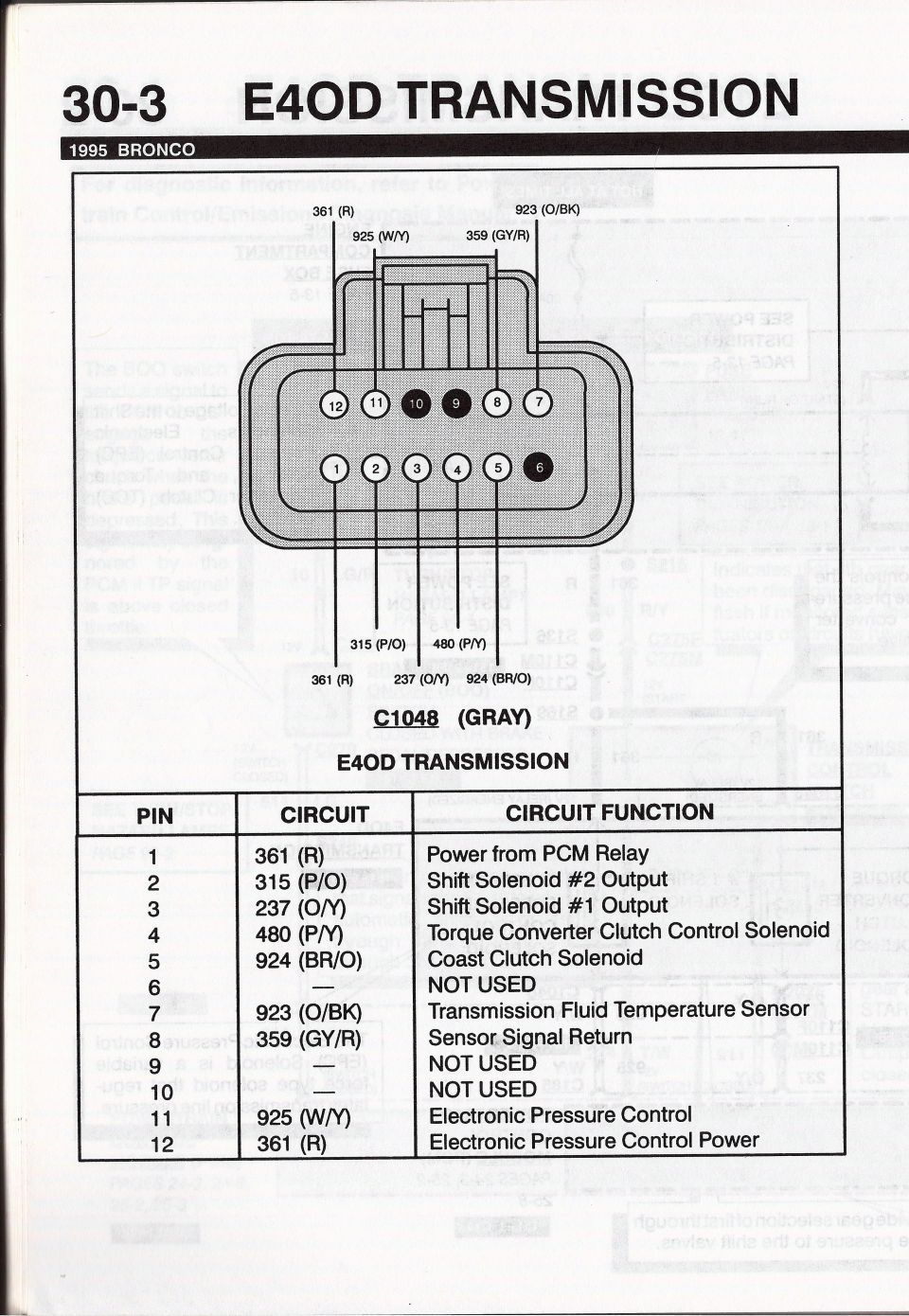

This document is page 30-3 of a 1995 Ford Bronco wiring/connector reference covering the E4OD automatic transmission. It shows the pinout of connector C1048 (gray), the main harness connector at the E4OD transmission. A drawing of the 12-cavity connector face is shown with wire circuit numbers and color codes called out at each cavity: 361 (R), 925 (W/Y), 923 (O/BK), 359 (GY/R) at the top, and 315 (P/O), 480 (P/Y), 361 (R), 237 (O/Y), 924 (BR/O) at the bottom. A table lists each of the 12 pins with its circuit number, wire color, and function: Pin 1-361 (R) Power from PCM Relay; Pin 2-315 (P/O) Shift Solenoid #2 Output; Pin 3-237 (O/Y) Shift Solenoid #1 Output; Pin 4-480 (P/Y) Torque Converter Clutch Control Solenoid; Pin 5-924 (BR/O) Coast Clutch Solenoid; Pin 7-923 (O/BK) Transmission Fluid Temperature Sensor; Pin 8-359 (GY/R) Sensor Signal Return; Pin 11-925 (W/Y) Electronic Pressure Control; Pin 12-361 (R) Electronic Pressure Control Power. Pins 6, 9 and 10 are marked NOT USED. Useful for diagnosing solenoid, TFT sensor, and EPC circuit problems at the transmission connector.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the pinout of the E4OD transmission connector C1048?: C1048 (gray) is a 12-pin connector: Pin 1 = 361 (R) Power from PCM Relay; Pin 2 = 315 (P/O) Shift Solenoid #2 Output; Pin 3 = 237 (O/Y) Shift Solenoid #1 Output; Pin 4 = 480 (P/Y) Torque Converter Clutch Control Solenoid; Pin 5 = 924 (BR/O) Coast Clutch Solenoid; Pin 7 = 923 (O/BK) Transmission Fluid Temperature Sensor; Pin 8 = 359 (GY/R) Sensor Signal Return; Pin 11 = 925 (W/Y) Electronic Pressure Control; Pin 12 = 361 (R) Electronic Pressure Control Power. Pins 6, 9, and 10 are NOT USED.
Which wires go to the E4OD shift solenoids?: Pin 2, circuit 315 (P/O), is the Shift Solenoid #2 Output, and Pin 3, circuit 237 (O/Y), is the Shift Solenoid #1 Output.
What wire is the E4OD transmission fluid temperature sensor on?: Pin 7, circuit 923 (O/BK), is the Transmission Fluid Temperature Sensor; its signal return is Pin 8, circuit 359 (GY/R).
Which pins on connector C1048 are not used?: Pins 6, 9, and 10 are marked NOT USED (shown filled in on the connector drawing).
What circuit controls the torque converter clutch on the E4OD?: Pin 4, circuit 480 (P/Y), is the Torque Converter Clutch Control Solenoid; Pin 5, circuit 924 (BR/O), is the Coast Clutch Solenoid.
