C3015 14A005 right power seat motor 6-pin connector face and pin…

C3015 14A005 right power seat motor 6-pin connector face and pin table
C3015 14A005 right power seat motor 6-pin connector face and pin tableOriginal file
C3015 14A005 right power seat motor 6-pin connector face and pin table

Reference · 1998-2011 Crown VictoriaAll 29 wiring diagrams

LH A-pillar connector and splice location view with C340, C2205, C277, C2040, C310B and C2015 callouts C3015 14A005 right power seat motor 6-pin connector face and pin table 2008 Crown Victoria/Grand Marquis turn signal, stop and hazard lamps wiring diagram, page 90-2 Power Door Lock & Door Ajar Switch Wiring Diagram - Latch Circuits P777/P292 Tailgate Lock System Wiring Diagram - BCM, Fuse 14 40A, Circuits P235/P237 1992-2005 Crown Victoria / Grand Marquis DRL Module Connector Pinouts (C180) Ford Crown Victoria Center Console Connector Locations C380 C319 C3247 Diagram Connector #2 pinout chart comparing Crown Victoria and Marauder white connectors with circuits and wire colors Ford Crown Victoria Charging System Wiring Diagram - Generator & Charge Indicator Ford Crown Victoria Fog Light Relay Wiring Diagram - Lowbeam Trigger & Override 1999 Ford Crown Victoria Starting Circuit Wiring Diagram - Starter Relay & DTR Ford Crown Victoria Air Suspension Compressor Relay Wiring Diagram - EVTM 29wiring diagrams1998-2011 Ford Crown Victoria More reference Stainless Works Exhaust Holiday Sale Ad - 10% Off & Free Shipping PromoBrochure Ford Fusion Monroney window sticker with standard equipment list and fuel economy labelSpec plate Gasoline Engine Oil Viscosity Chart by Outside Temperature (5W-30 to 20W-50)Manual page Moroso 20554 & 20555 Aluminum Oil Pan Install - Ford F-150, Lightning, MustangService procedure Ford PCM Sensor Inputs & MIL Diagram (IAT MAF ECT CHT VSS) - A0009696Schematic Center console exploded parts diagram with base part number callouts and fastenersExploded parts Ford Crown Victoria Battery Junction Box (BJB) Diagram - Relay & Fuse LayoutFuse chart Bill's Garage Blueprint - Floor Plan, Site Plan & Elevations (Construction Drawing)Blueprint Ford Torque Spec Diagram 7 Nm (62 lb-in) Fastener - 2001 Crown Victoria (AN2243-A)Torque spec 1998 GM 4.3L Emission Label - Vacuum Hose Routing, Belt Diagram & Plug GapVacuum routing

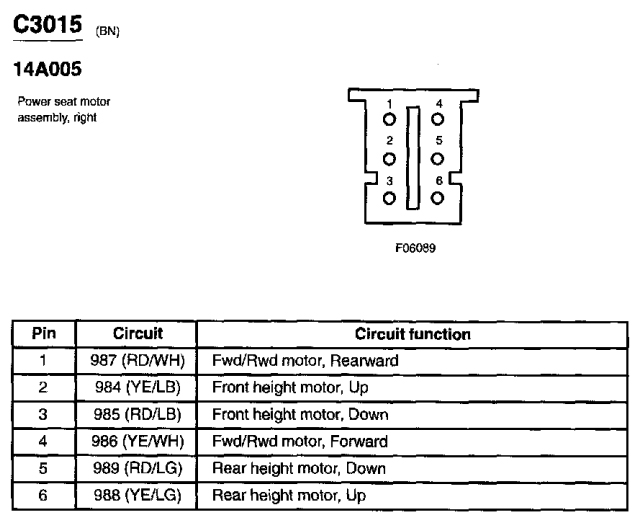

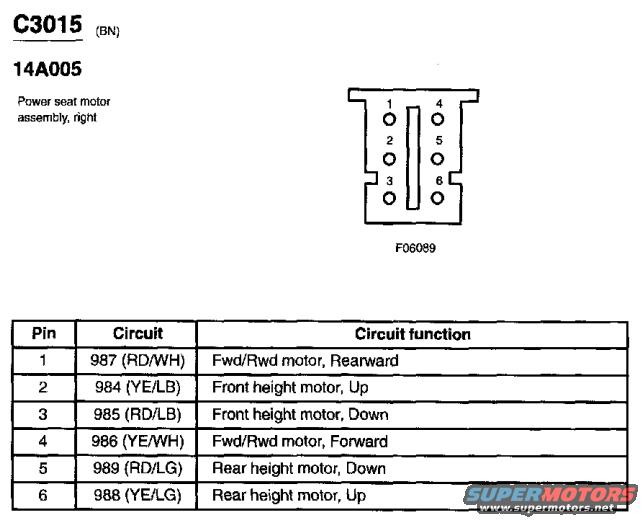

this is the floor connector view of the power seat motor harness, this connector type and wiring color codes didn't change from 1999-2008.
