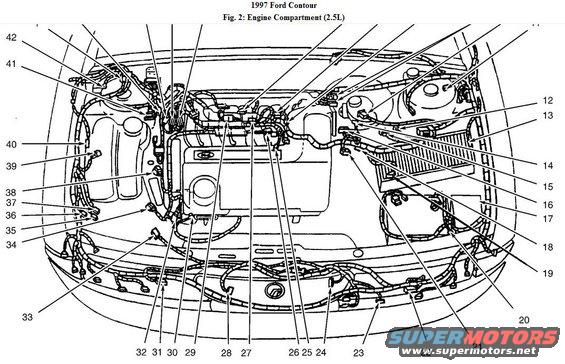

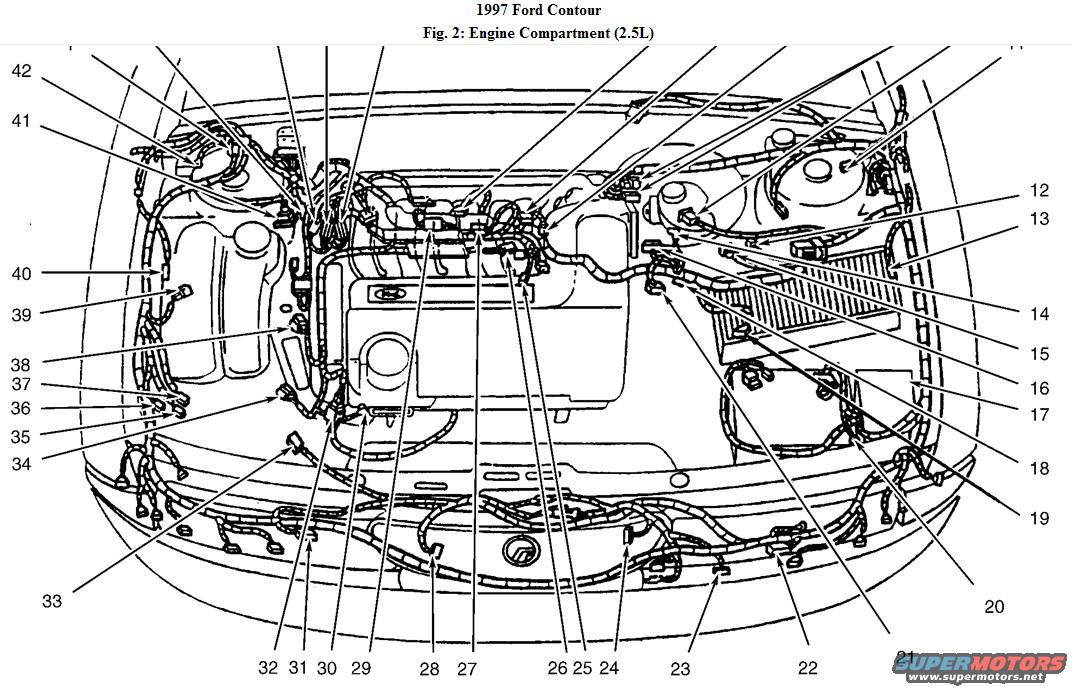

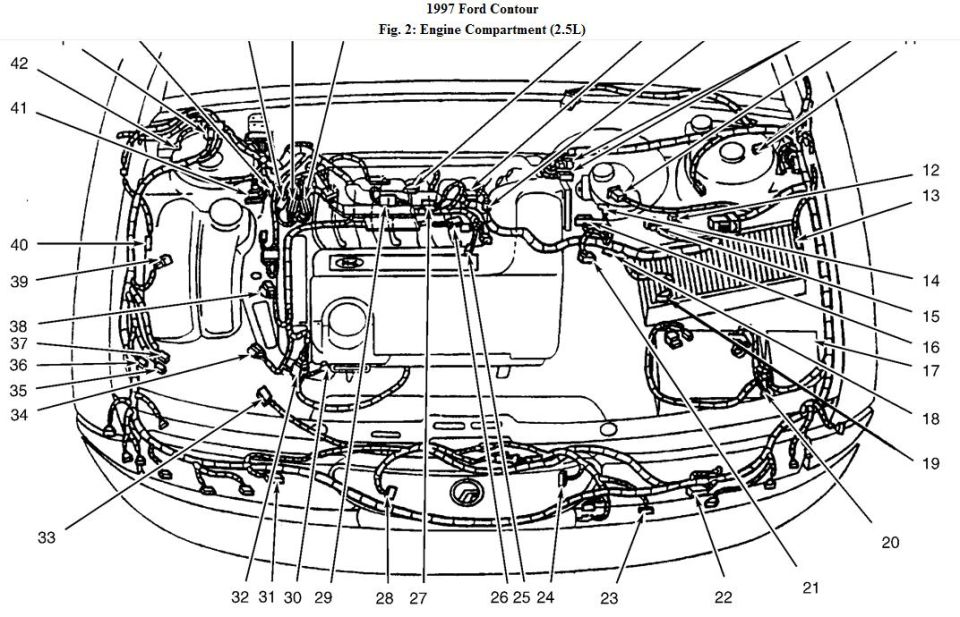

1997 Ford Contour 2.5L Engine Compartment Component Location Diagram (Fig. 2)

This document is a scanned line-art illustration labeled '1997 Ford Contour, Fig. 2: Engine Compartment (2.5L)'. It shows an overhead/front view of the engine compartment of a 1997 Ford Contour equipped with the 2.5L engine. Numbered callout leader lines (numbers 12 through 42) point to various components, connectors, wiring harness routing points, grounds, and other engine-bay items around the engine, battery tray area, radiator core support, firewall/cowl, and inner fenders. However, this scan contains only the illustration itself — no accompanying legend or component key table is included, so the identity of each numbered item cannot be determined from this page alone. The figure appears to be one page from a multi-page service manual or wiring/component locator set (the 'Fig. 2' designation implies at least a Fig. 1 and likely a legend elsewhere). A reader can use this diagram to visualize the physical layout of the 2.5L Contour engine compartment and, when paired with the matching legend page, to locate specific components identified by the callout numbers 12–42. Note that although uploaded to a 1996 Ford Bronco gallery, the document explicitly states it applies to the 1997 Ford Contour.
