Ford chart K19256-C of tire size revs per mile vs axle ratio and…

Ford chart K19256-C of tire size revs per mile vs axle ratio and speed sensor ring teeth
Ford chart K19256-C of tire size revs per mile vs axle ratio and speed sensor ring teethOriginal file
Ford chart K19256-C of tire size revs per mile vs axle ratio and speed sensor ring teeth

Reference · 1992-1996 BroncoAll 98 manual pages

Bronco exterior paint color code tables with sample F-Series certification label and paint code box Ford TFI Ignition Waveforms: PIP, SPOUT, IDM Signals - Push Start & CCD Dwell Manual page 9.3 Throttle Air Bypass (ISC) with Fig. 9-2 graph of idle rpm vs coolant temperature 1996 Ford Bronco 5.0L & 5.8L Heated Oxygen Sensor (O2) Locations Diagram 1996 Ford Bronco 5.8L O2 Sensor Locations - Heated Oxygen & Catalyst Sensors Ford Bronco/Truck Ground & Connector Locations - Exterior/Fog Lights (Page 44) Ford chart K19256-C of tire size revs per mile vs axle ratio and speed sensor ring teeth Tire size and pressure chart for Bronco 4x4 and F-150 by wheelbase, wheel, tire, GVW and PSI/kPa BMW M3 Owner's Manual Page 3 - Engine Compartment Component Locations Supplementary Owner's Manual M3 Contents - Vehicle Immobilization System Index Lift kit part number table for 80-96 Bronco 4WD, 2WD and 78-79 Bronco 4WD by lift height 1996 F-Series and Bronco manual page 00-01-8 on VIN check digit, model year and plant codes 98manual pages1992-1996 Ford Bronco More reference Ford TSB 88-5-14 Oil Pressure Switch & Resistor Jumper Wiring DiagramWiring diagram 1996 Ford Bronco Tailgate Torsion Bar Mounts Diagram - Brackets & Torque SpecExploded parts Parasitic Battery Draw Test Procedure - Checking for Unwanted Draw (Wilson)Service procedure Ford Bronco/F-Series Axle Code Chart - Certification Label Rear Axle RatiosSpec plate 1996 Ford Bronco Secondary Air Injection (Thermactor) System Diagram - TAB/TADSchematic 1996 Ford Bronco/F-150 Frame Dimensions - Underbody Misalignment Check DiagramBlueprint 1992-96 Ford F150 F250 Bronco Dashboard Components Parts Diagram - LMC TruckBrochure 1996 Ford Bronco A/C-Heater Vacuum Routing Diagram - HVAC Door Vacuum MotorsVacuum routing 1996 Ford Bronco Power Distribution Box Diagram - Fuel Pump & PCM RelaysFuse chart Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record SheetTorque spec

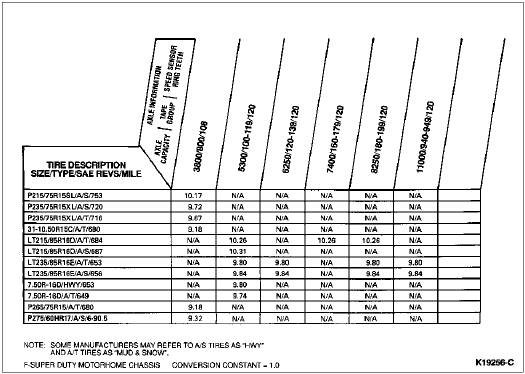

Ford chart K19256-C for the F-Super Duty motorhome chassis listing tire sizes and SAE revs/mile against axle ratio and speed sensor ring teeth groups.
