Where is ground G701 located?

Behind the instrument panel near the RH side of the radio (page-figure 69-2).

Where are grounds G801 and G802?

G801 is on the LH inner fender behind the headlights (38-2); G802 is on the RH inner fender behind the headlights (38-1).

Where are the fog light connectors located?

Connector C1308 is at the RH fog light and C1309 is at the LH fog light; both are black (BK) 2-terminal connectors, shown at page-figure 37-1.

Where is the trailer lights relay?

Figure 3 shows the trailer lights relay on the LH dash panel with trailer tow, near the junction block and fuse links P and B.

Where is ground G1303?

At the LH radiator support, page-figure 38-2.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “pukin' dogII”/ Photo supermotors.net/registry/media/877838

Ford Bronco/Truck Ground & Connector Locations - Exterior/Fog Lights (Page 44)

Service manual page listing exterior/fog light connector and ground locations with figures

‹ ›

Service manual page listing exterior and fog light connector and ground locations alongside component figures.

AI caption July 2011 · Photo 128 of 224

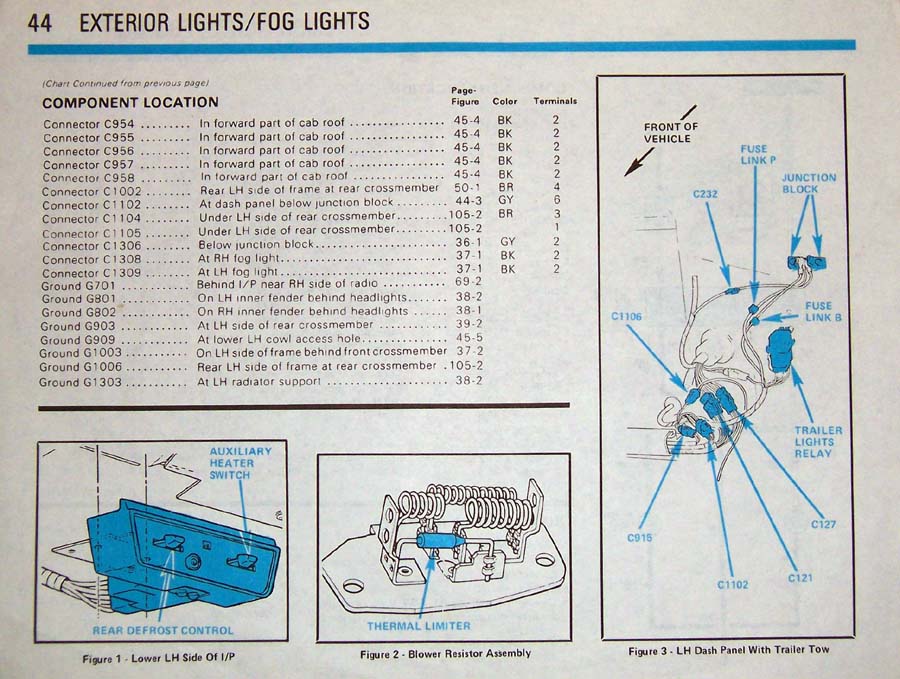

This is page 44 of a Ford truck electrical/vacuum troubleshooting manual covering the Exterior Lights/Fog Lights section. The page continues a component location chart from the previous page, listing connectors C954–C958 (forward part of cab roof), C1002, C1102, C1104, C1105, C1306, and the fog light connectors C1308 (RH) and C1309 (LH), each with a page-figure reference, connector color (BK, BR, or GY), and terminal count. It also lists ground locations: G701 (behind I/P near RH side of radio), G801/G802 (inner fenders behind headlights), G903 (LH side of rear crossmember), G909 (lower LH cowl access hole), G1003 (LH side of frame behind front crossmember), G1006 (rear LH frame at rear crossmember), and G1303 (LH radiator support). Three illustrations accompany the chart: Figure 1 shows the lower LH side of the instrument panel with the auxiliary heater switch and rear defrost control; Figure 2 shows the blower resistor assembly and its thermal limiter; Figure 3 shows the LH dash panel with trailer tow wiring, identifying fuse link P, fuse link B, the junction block, the trailer lights relay, and connectors C232, C1106, C915, C1102, C127, and C121. Readers can use this page to locate grounds, connectors, and trailer-tow relay components on the vehicle.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is ground G701 located?: Behind the instrument panel near the RH side of the radio (page-figure 69-2).
Where are grounds G801 and G802?: G801 is on the LH inner fender behind the headlights (38-2); G802 is on the RH inner fender behind the headlights (38-1).
Where are the fog light connectors located?: Connector C1308 is at the RH fog light and C1309 is at the LH fog light; both are black (BK) 2-terminal connectors, shown at page-figure 37-1.
Where is the trailer lights relay?: Figure 3 shows the trailer lights relay on the LH dash panel with trailer tow, near the junction block and fuse links P and B.
Where is ground G1303?: At the LH radiator support, page-figure 38-2.
