How do you adjust the front wheel bearings with automatic hub locks?

Per callout B: while rotating the front disc brake hub and rotor, tighten until snug to seat the wheel bearings, back the nut off 90 degrees (1/4 turn), then tighten to 1.8 N·m (16 lb-in).

What is the Ford part number for the automatic hub body?

The hub body is part number 1K105; the cam assembly and wheel retainer (nut) are part of 1K105.

What seals are used on the front spindle and axle?

The diagram lists the axle rolling diaphragm seal (RDS) 3C132, integral spacer needle bearing seal 3299, outer spindle rolling diaphragm seal 3254, and wheel hub grease seal 1190.

What part numbers cover the wheel bearings and cups?

Both the inner and outer wheel bearing cups are 4222, each used with bearing 4221.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “pukin' dogII”/ Photo supermotors.net/registry/media/877839

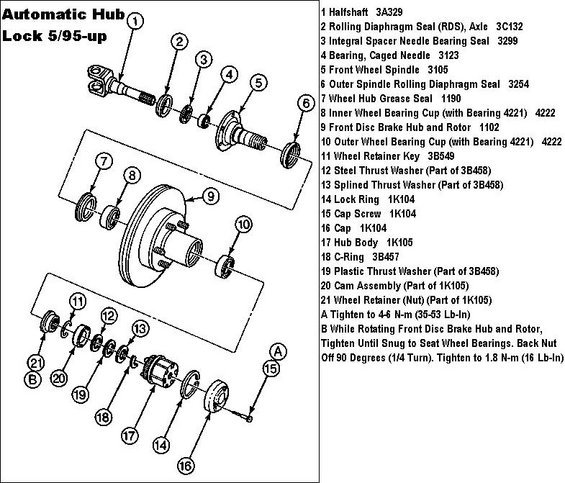

Ford Automatic Hub Lock Exploded Diagram 5/95-Up - Parts & Torque Specs

Exploded parts diagram of automatic locking front hub assembly with numbered part legend

‹ ›

Exploded parts diagram of the 1995-up automatic hub lock front spindle and bearing assembly with a numbered part legend.

AI caption July 2011 · Photo 129 of 224

This document is an exploded parts diagram of the Ford automatic hub lock assembly used on vehicles built 5/95 and up. The illustration shows the front axle halfshaft, spindle, disc brake hub and rotor, wheel bearings, seals, thrust washers, and the automatic locking hub assembly in exploded view, with numbered callouts (1-21) keyed to a legend. The legend identifies each component with its Ford base part number, including the halfshaft (3A329), rolling diaphragm seal (3C132), integral spacer needle bearing seal (3299), caged needle bearing (3123), front wheel spindle (3105), outer spindle rolling diaphragm seal (3254), wheel hub grease seal (1190), wheel bearing cups (4222) with bearings (4221), front disc brake hub and rotor (1102), wheel retainer key (3B549), lock ring/cap screw/cap (1K104), hub body (1K105), C-ring (3B457), and various thrust washers (part of 3B458). Two torque specifications are provided: callout A specifies tightening to 4-6 N·m (35-53 lb-in), and callout B describes the wheel bearing seating procedure — tighten until snug while rotating the hub and rotor, back the nut off 90 degrees (1/4 turn), then tighten to 1.8 N·m (16 lb-in). Useful for anyone servicing or rebuilding the front hubs and bearings on these vehicles.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the automatic hub lock cap screws?: Callout A specifies tightening to 4-6 N·m (35-53 lb-in).
How do you adjust the front wheel bearings with automatic hub locks?: Per callout B: while rotating the front disc brake hub and rotor, tighten until snug to seat the wheel bearings, back the nut off 90 degrees (1/4 turn), then tighten to 1.8 N·m (16 lb-in).
What is the Ford part number for the automatic hub body?: The hub body is part number 1K105; the cam assembly and wheel retainer (nut) are part of 1K105.
What seals are used on the front spindle and axle?: The diagram lists the axle rolling diaphragm seal (RDS) 3C132, integral spacer needle bearing seal 3299, outer spindle rolling diaphragm seal 3254, and wheel hub grease seal 1190.
What part numbers cover the wheel bearings and cups?: Both the inner and outer wheel bearing cups are 4222, each used with bearing 4221.
