Ford Bronco/F-150 Spindle Rolling Diaphragm Seal 3254 - Install Tool Diagram

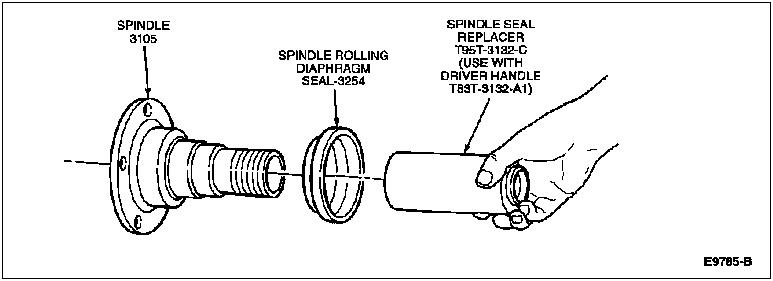

This document is an exploded parts illustration showing the front spindle rolling diaphragm seal installation for a Ford truck front axle. Three components are shown in an exploded view along a common axis: the spindle (part reference 3105) on the left with its flange and threaded shaft, the spindle rolling diaphragm seal (part reference 3254) in the middle, and on the right a hand holding the special service tool used to install the seal — the Spindle Seal Replacer, tool number T95T-3132-C, which the callout notes must be used with Driver Handle T80T-3132-A1. The illustration reference number E9785-B appears in the lower right corner. The drawing shows how the seal aligns with the spindle and how the tubular seal replacer tool is positioned to drive the seal into place. A reader can learn the correct part group numbers for the spindle and rolling diaphragm seal, as well as the exact Ford special service tool numbers required to properly install the spindle rolling diaphragm seal without damaging it. No torque specifications, model years, or additional procedural text appear in the illustration itself.
