1996 Ford Bronco Tailgate Weatherstrip Parts Diagram - 41608, 43732 Screws

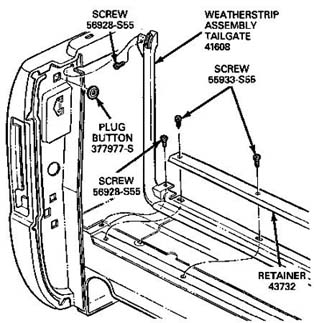

This is an exploded parts illustration showing the tailgate weatherstrip assembly and its fasteners on a Ford Bronco. The line drawing depicts the rear body opening (tailgate opening) of the vehicle with callouts identifying each component and its Ford base part number. The parts identified are: the tailgate weatherstrip assembly (part 41608), which runs along the tailgate opening; screws (56928-S55) used at the upper and mid pillar area to secure the weatherstrip; a plug button (377977-S) fitted into the body pillar; screws (55933-S55) used along the lower/side channel; and a retainer (43732) at the lower corner of the opening that holds the weatherstrip in place. Arrows point from each label to the corresponding fastener or component location on the body. A reader can use this diagram to identify the correct part numbers and installation positions when replacing or reinstalling the tailgate weatherstrip, its retainers, and hardware. The document itself carries no visible year, model, or title text, but it was uploaded as part of a 1996 Ford Bronco reference album and is consistent with a factory parts/body service illustration for that vehicle's tailgate area.
