1996 Ford Bronco Tailgate Scuff Plate & Weatherstrip Parts Diagram (42624)

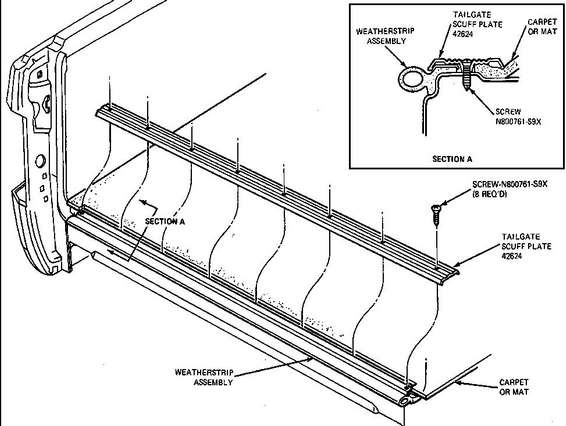

This document is an exploded parts / installation diagram showing the tailgate scuff plate area of a vehicle body opening (consistent with the tailgate opening of a Ford Bronco). The main illustration shows the rear body opening with the tailgate scuff plate (part number 42624) positioned along the lower edge, secured with eight screws (part number N800761-S9X). The weatherstrip assembly runs along the opening beneath the scuff plate, and the carpet or mat edge is captured under the scuff plate. An inset labeled 'Section A' provides a cross-sectional view showing how the weatherstrip assembly, tailgate scuff plate (42624), carpet or mat, and screw (N800761-S9X) stack together at the tailgate sill. A reader can learn the part identification numbers for the scuff plate and its screws, the required screw quantity (8), and how the scuff plate overlaps the carpet/mat and mates with the weatherstrip at the tailgate opening. The document itself contains no year, make, or model text; the 1996 Ford Bronco attribution comes from the uploader.
