2010 Hyundai Genesis 3.8L Radiator & Cooling Fan Exploded Parts Diagram

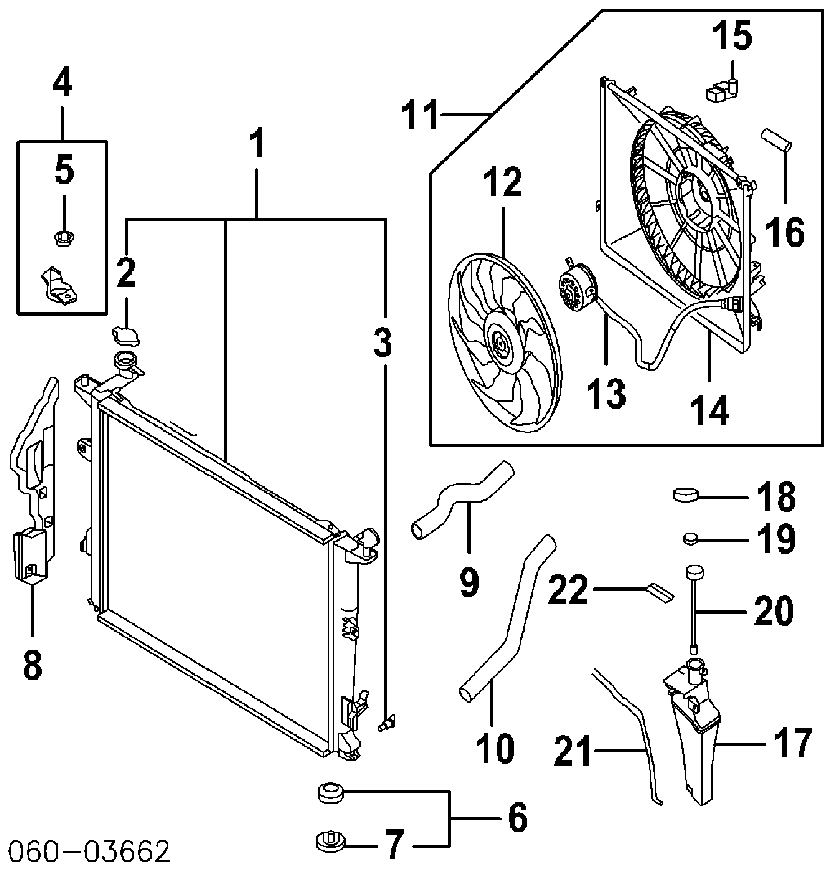

This document is an exploded parts diagram of an automotive engine cooling system, uploaded as "38L radiator and parts.gif" for a 2010 Hyundai Genesis. The illustration shows the radiator assembly (callout 1) with its mounting brackets/insulators (2, 4, 5), radiator cap area (2), side supports (3, 8), and drain plug hardware (6, 7). A boxed inset (11) details the cooling fan assembly, including the fan blade (12), fan motor (13), fan shroud (14), and related small parts (15, 16). Also shown are the upper and lower radiator hoses (9, 10), the coolant reservoir/overflow tank (17) with its cap (18), a small plug or grommet (19), dipstick/level indicator or rod (20), overflow hose (21), and a clip or label (22). No part numbers, torque specs, or a parts legend table are present in this scan — only the numbered callouts (1–22) and the diagram reference number 060-03662 in the lower left corner. The document itself contains no year, make, model, or engine designation, so applicability to the claimed 2010 Genesis 3.8L cannot be confirmed or contradicted from the image alone. A reader can learn the relative arrangement and component count of the radiator, fan, and reservoir assembly.
