2010 Hyundai Genesis Coupe Rear Brake Exploded Parts Diagram - Disc, Caliper, Hub

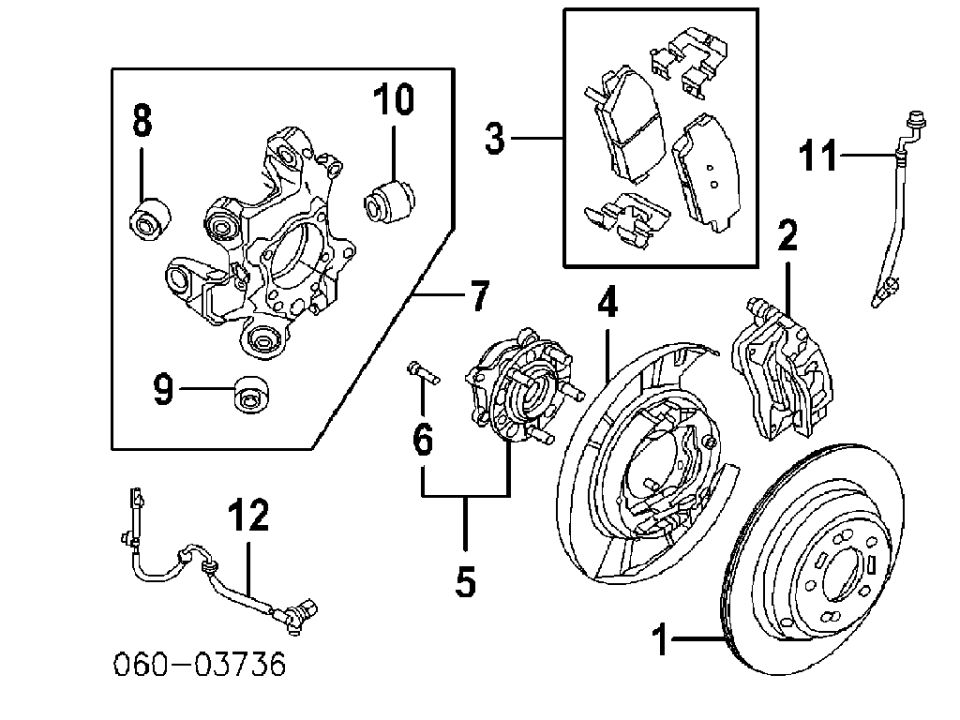

Exploded parts diagram of a rear brake assembly showing knuckle, hub, rotor, caliper, pads, and ABS sensor.
This document is an exploded parts diagram showing the rear brake and rear knuckle/hub area of a vehicle, uploaded as covering the rear brakes of a 2010 Hyundai Genesis Coupe. Twelve numbered callouts identify the components and their assembly relationships: the rear brake disc (1), brake caliper (2), a boxed brake pad kit including pads, shims and hardware clips (3), the splash shield/backing plate containing the parking brake shoe assembly (4), the rear hub and bearing unit (5) with its mounting bolt (6), the rear axle carrier/knuckle (7) with three pressed-in bushings (8, 9, 10), the flexible brake hose (11), and the ABS wheel speed sensor with its harness (12). The only printed text on the diagram is the callout numbers and the drawing reference number 060-03736. The diagram contains no part numbers, torque specifications, or year/model text, so its exact application must be taken from the uploader's context. A reader can learn the identity, relative position, and assembly order of the rear brake and hub components, which is useful when ordering parts or disassembling the rear brake/knuckle area.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What components are shown in this rear brake diagram?
- The diagram shows 12 numbered components: the rear brake disc, caliper, brake pad kit with shims and clips, splash shield/backing plate with parking brake shoes, hub and bearing assembly with bolt, rear knuckle/axle carrier with three bushings, brake hose, and ABS wheel speed sensor.
- Does the parking brake use the rotor or separate shoes?
- The diagram shows a parking brake shoe assembly mounted on the backing plate/splash shield (item 4) behind the disc, indicating a drum-in-hat style parking brake separate from the caliper.
- How many bushings are shown in the rear knuckle assembly?
- Three bushings are called out on the rear knuckle/carrier assembly: items 8, 9, and 10.
- Are torque specs or part numbers listed on this diagram?
- No. The only text visible is the callout numbers 1-12 and the drawing reference number 060-03736; no part numbers or torque values are shown.
