2010 Hyundai Genesis Coupe Rear Suspension Exploded Diagram - Shock, Spring, Bar

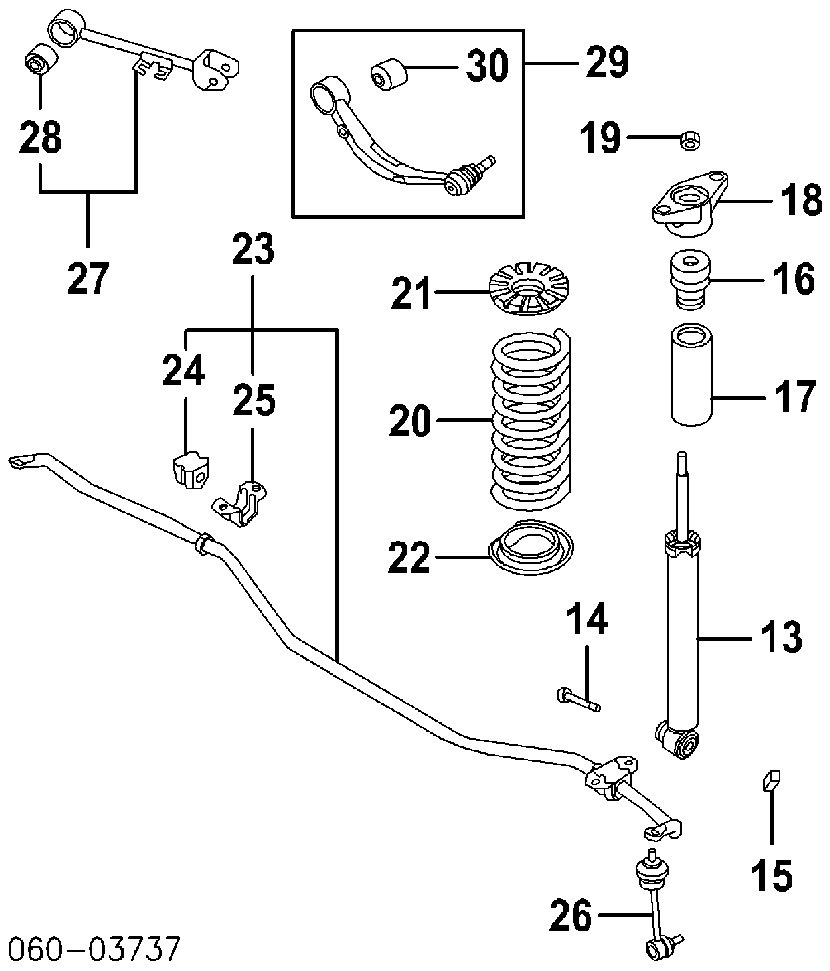

This document is a black-and-white exploded parts diagram of a rear suspension assembly, uploaded to a 2010 Hyundai Genesis Coupe gallery as "Gen Coupe Rear suspension 2." It carries the drawing reference number 060-03737 in the lower-left corner and uses numbered callouts (13 through 30) rather than printed part names. The illustration shows the rear shock absorber (13) with its mounting hardware — bolt (14), fastener (15), bump stopper (16), dust cover (17), upper mount/insulator (18), and nut (19) — plus the coil spring (20) with upper pad (21) and lower pad (22). It also depicts the rear stabilizer (sway) bar (23) with its bushing (24), bracket (25), and end link (26), along with suspension arms: an arm with bushings shown as items 27/28, and a boxed upper arm assembly (29) containing a bushing (30) and a ball-joint end. A reader can learn the visual arrangement and disassembly order of the rear shock, spring, sway bar, and arm components, and can use the callout numbers with an accompanying parts list (likely on another page of this multi-page set) to identify individual parts. No torque specifications, part numbers, or year/model statements appear on the diagram itself.
