Hyundai Genesis Coupe Emission System Parts Diagram - O2 Sensors & EVAP Canister
Exploded parts breakdown of an emission system listing canister, valves, hoses and oxygen sensors with numbered callouts, part numbers and prices.

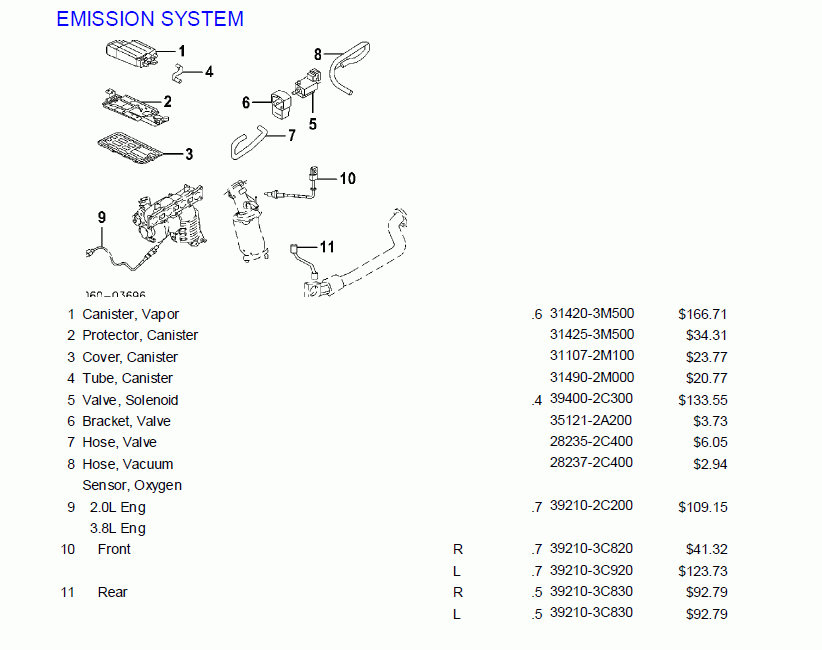

This document is an exploded parts diagram and parts list for the EMISSION SYSTEM of a Hyundai Genesis Coupe. The illustration shows eleven numbered components including the vapor canister assembly (canister, protector, cover, and tube), a solenoid valve with its mounting bracket, valve and vacuum hoses, and oxygen sensors mounted on the exhaust manifold and catalytic converter area. The accompanying table lists each part with its Hyundai part number and price: Canister, Vapor 31420-3M500 ($166.71); Protector, Canister 31425-3M500 ($34.31); Cover, Canister 31107-2M100 ($23.77); Tube, Canister 31490-2M000 ($20.77); Valve, Solenoid 39400-2C300 ($133.55); Bracket, Valve 35121-2A200 ($3.73); Hose, Valve 28235-2C400 ($6.05); and Hose, Vacuum 28237-2C400 ($2.94). Oxygen sensors are broken out by engine: the 2.0L engine uses 39210-2C200 ($109.15), while the 3.8L engine uses front sensors 39210-3C820 (right, $41.32) and 39210-3C920 (left, $123.73), and rear sensors 39210-3C830 for both right and left sides ($92.79 each). A reader can use this page to identify emission-system component locations and order the correct O2 sensor or EVAP canister parts by engine and position.
Is this accurate? Sign in to help verify it.
Frequently asked questions
- What is the part number for the vapor canister on the Genesis Coupe?
- The Canister, Vapor is part number 31420-3M500, listed at $166.71. The canister protector is 31425-3M500 ($34.31), the cover is 31107-2M100 ($23.77), and the canister tube is 31490-2M000 ($20.77).
- What oxygen sensor does the 2.0L engine use?
- The 2.0L engine oxygen sensor (item 9) is part number 39210-2C200, priced at $109.15.
- What are the front O2 sensor part numbers for the 3.8L engine?
- For the 3.8L engine, the front oxygen sensors (item 10) are 39210-3C820 for the right side ($41.32) and 39210-3C920 for the left side ($123.73).
- What are the rear O2 sensor part numbers for the 3.8L engine?
- The rear oxygen sensors (item 11) are 39210-3C830 for both right and left sides, listed at $92.79 each.
- What is the part number for the purge solenoid valve and its bracket?
- The Valve, Solenoid is 39400-2C300 ($133.55) and the Bracket, Valve is 35121-2A200 ($3.73). The associated Hose, Valve is 28235-2C400 ($6.05) and Hose, Vacuum is 28237-2C400 ($2.94).
