Ford EEC SD to MAF Conversion Pin-Out Table Pins 55-60 - Injector, PIP, GND

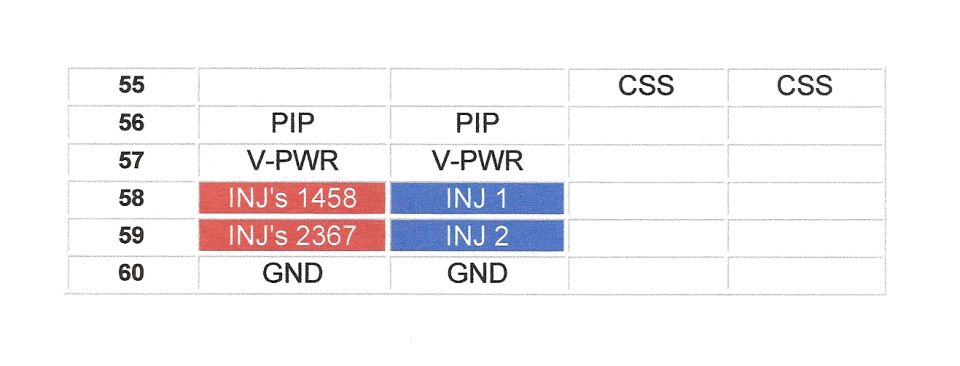

Ford computer EEC pin-out reference table with highlighted pins, rows 55-60
Ford computer EEC pin-out reference table with highlighted pins, rows 55-60Original file
Ford computer EEC pin-out reference table with highlighted pins, rows 55-60

Reference · 1987-1991 BroncoAll 53 manual pages

Ford truck steering assemblies part number chart for 1970-2004 full size pickups and Bronco 1990 order guide page listing California emissions and high altitude principal use codes 422, 93N, 423, 936, 4 Fuel Injector Spray Patterns Diagram - Annular, Single-Hole & Multi-Hole Metering Ford EEC SD to MAF Conversion Pin-Out Table Pins 55-60 - Injector, PIP, GND Ford Bronco SD to MAF EEC Pin-Out Chart Pins 23-54 - Speed Density Conversion '95 Bronco anti-theft connector reference list, manual page 112-5 Ford 4-Speed Automatic Transmission Pan ID Chart - AOD, AODE, E4OD, A4LD Ford Three-Speed Automatic Transmission Pan Gasket ID Chart - C3 C4 C5 C6 FMX Ford V8 camshaft application chart for 351W and 221-302 CI engines with duration, lift and lobe separation 1988 Ford Bronco Build Cost Sheet - "Mr. Hyde the Deuce" Parts & Expense List Ford automatic transmission identification chart of oil pan shapes for C3, C4, C6, MX, FX, FMX and Borg Warner 53manual pages1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Color-highlighted EEC computer pin-out reference table listing signal assignments for pins 55 through 60.

Part of 1987-1991 Ford Bronco Manual Pages

AI caption · Photo 946 of 1787

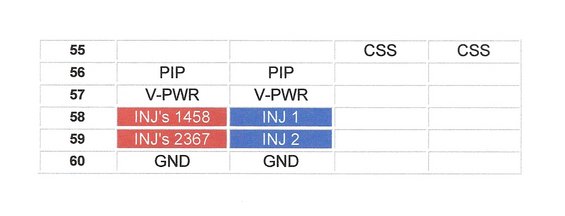

This document is a scanned fragment of an EEC computer (ECU) pin-out comparison table, covering connector pins 55 through 60. It appears to be page 3 of a 'Speed Density to MAF' (SD to MAF) conversion pin-out reference set. For each pin number, the table lists the signal assignment in two configurations (likely speed density vs. mass air flow, per the album context). Pin 55 is labeled CSS in the two right-hand columns. Pin 56 is PIP (Profile Ignition Pickup) in both left columns. Pin 57 is V-PWR (vehicle power) in both. Pin 58 differs: in one column it drives injectors 1, 4, 5, and 8 ('INJ's 1458', highlighted red), while in the other it drives only 'INJ 1' (highlighted blue), indicating a change from bank-fire to a different injector driver arrangement. Similarly, pin 59 changes from injectors 2, 3, 6, and 7 ('INJ's 2367') to 'INJ 2'. Pin 60 is GND (ground) in both. A reader can learn how the injector driver pins and other signals differ between the two EEC computer configurations when performing an SD-to-MAF swap.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is pin 58 used for in this pin-out table?
Pin 58 is shown as 'INJ's 1458' (injectors 1, 4, 5, 8) in one column and 'INJ 1' in the other, indicating the injector driver assignment differs between the two configurations.
What does pin 59 control?
Pin 59 is listed as 'INJ's 2367' (injectors 2, 3, 6, 7) in one column and 'INJ 2' in the other column.
Which pin is ground on this connector section?
Pin 60 is labeled GND in both columns.
Where is the PIP signal located?
Pin 56 carries the PIP signal in both configurations shown.
What pin is CSS assigned to?
Pin 55 shows CSS in the two right-hand columns of the table.
