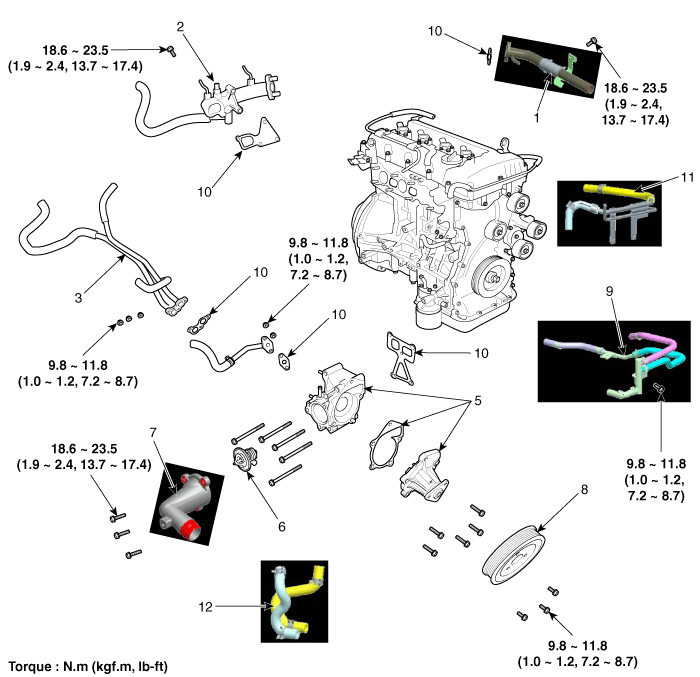

Hyundai Genesis Coupe 2.0L Water Pump & Coolant Pipe Exploded Diagram w/ Torque

This document is an exploded parts diagram showing the water pump and coolant plumbing components of a 4-cylinder engine, uploaded as reference material for a 2010 Hyundai Genesis (2.0L). The illustration shows the engine block at center with numbered callouts (1–12) identifying components such as coolant pipes and hoses (items 1, 3, 9, 11, 12), a coolant outlet fitting (item 2), the water pump housing and gasket (item 5), a thermostat (item 6), a coolant inlet pipe (item 7), the water pump pulley (item 8), and various gaskets/brackets (item 10 appears at several locations). Fastener torque specifications are given at each bolt location in N.m with kgf.m and lb-ft equivalents: pipe and fitting bolts are torqued to 18.6–23.5 N.m (1.9–2.4 kgf.m, 13.7–17.4 lb-ft), while smaller bracket, hose, and pulley bolts are torqued to 9.8–11.8 N.m (1.0–1.2 kgf.m, 7.2–8.7 lb-ft). A footnote defines the torque units. The diagram does not include a parts legend, part numbers, or explicit vehicle/year applicability, but it is useful for anyone disassembling or reinstalling the water pump and coolant pipes on this engine.
